The instrument meets the requirements of ISO 8754 for sulfur detection in fuel oil, as specified by the MARPOL Convention and ISO 8217‑2010 for international marine fuel specifications.
The instrument is designed in compliance with the national standard GB/T 17040‑2008, which specifies the method for sulfur content determination in petroleum and petroleum products using energy dispersive X‑ray fluorescence spectroscopy.
The E‑light features flexible analysis software that enables accurate detection of phosphorus content in edible oil within a 200‑second measurement cycle.
The instrument incorporates a side‑sampling design that helps contain sample leakage, thereby protecting internal hardware components and reducing the frequency of window film replacements.
Product features
Meeting international radiation safety standards, the instrument features radiation‑leakage prevention. Its Linux‑based system enables integrated, intelligent and user‑friendly operation.
The Accu‑cell sample cup design simplifies the injection and sampling process, helping to reduce the potential for human operational errors.
Optimized optical‑path design paired with software algorithms enhances detection accuracy and minimizes measurement variability. This portable instrument achieves performance comparable to conventional benchtop analyzers.

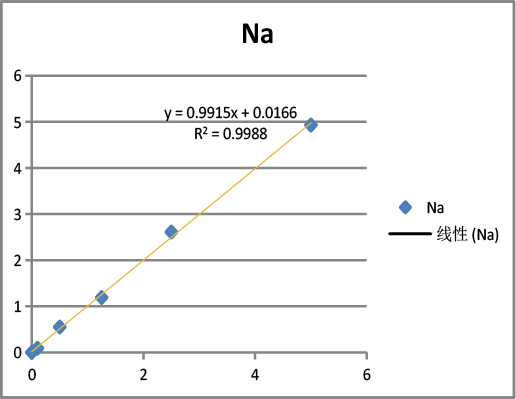

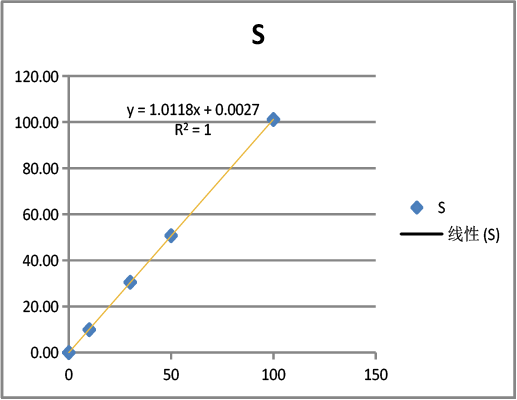

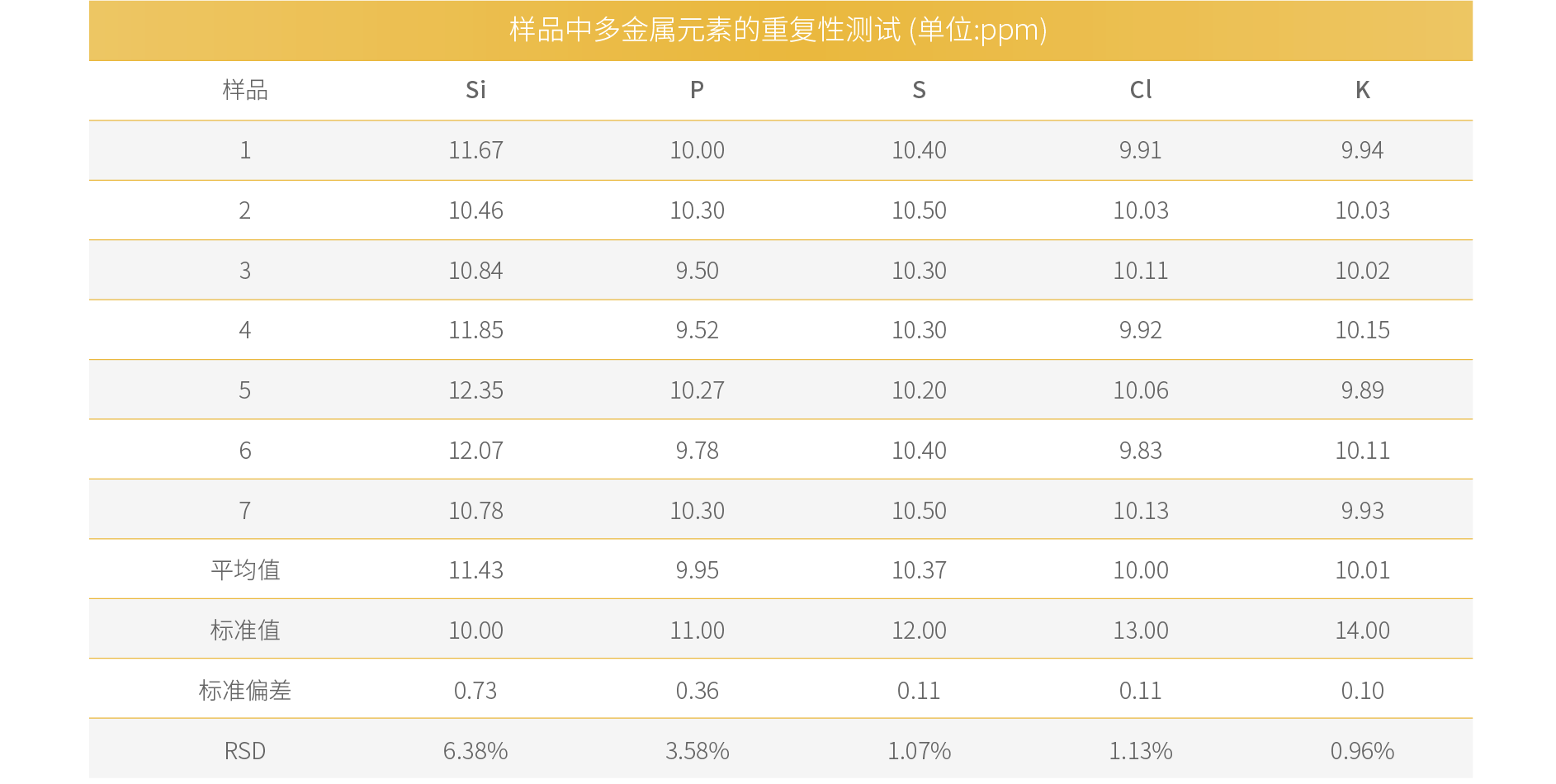

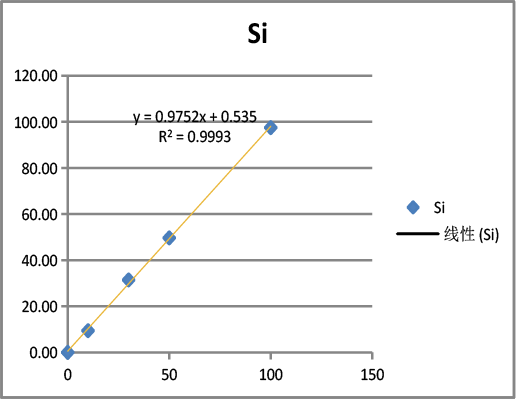

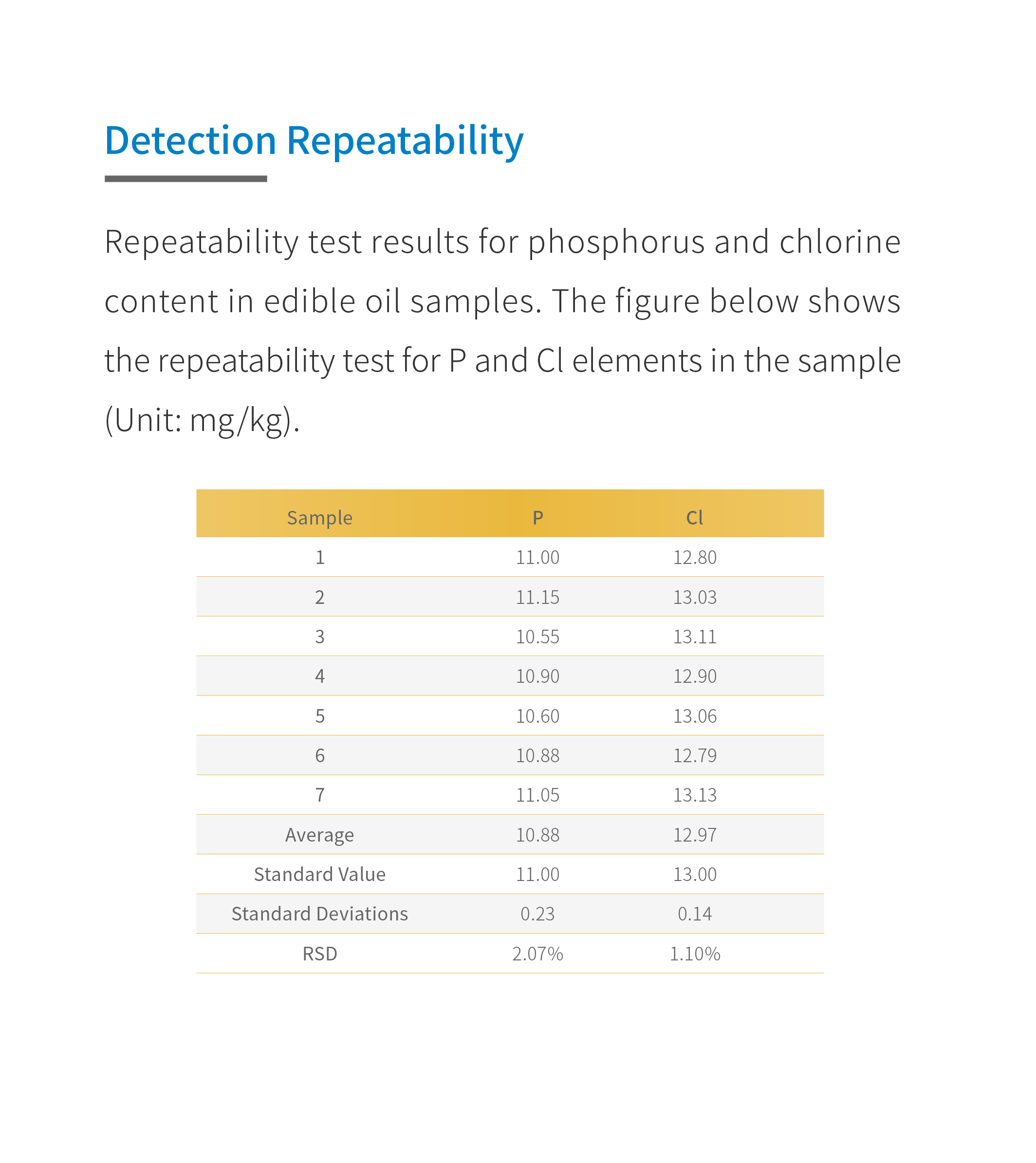

Performance data

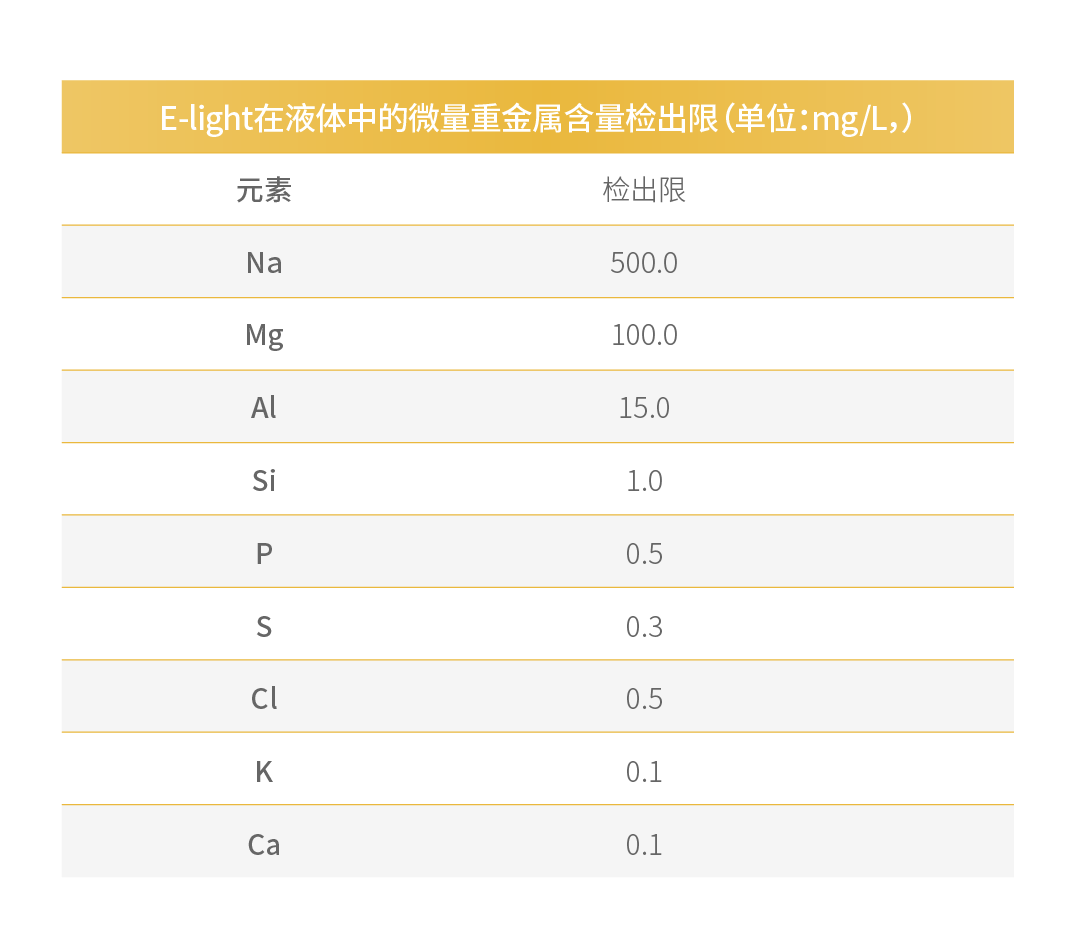

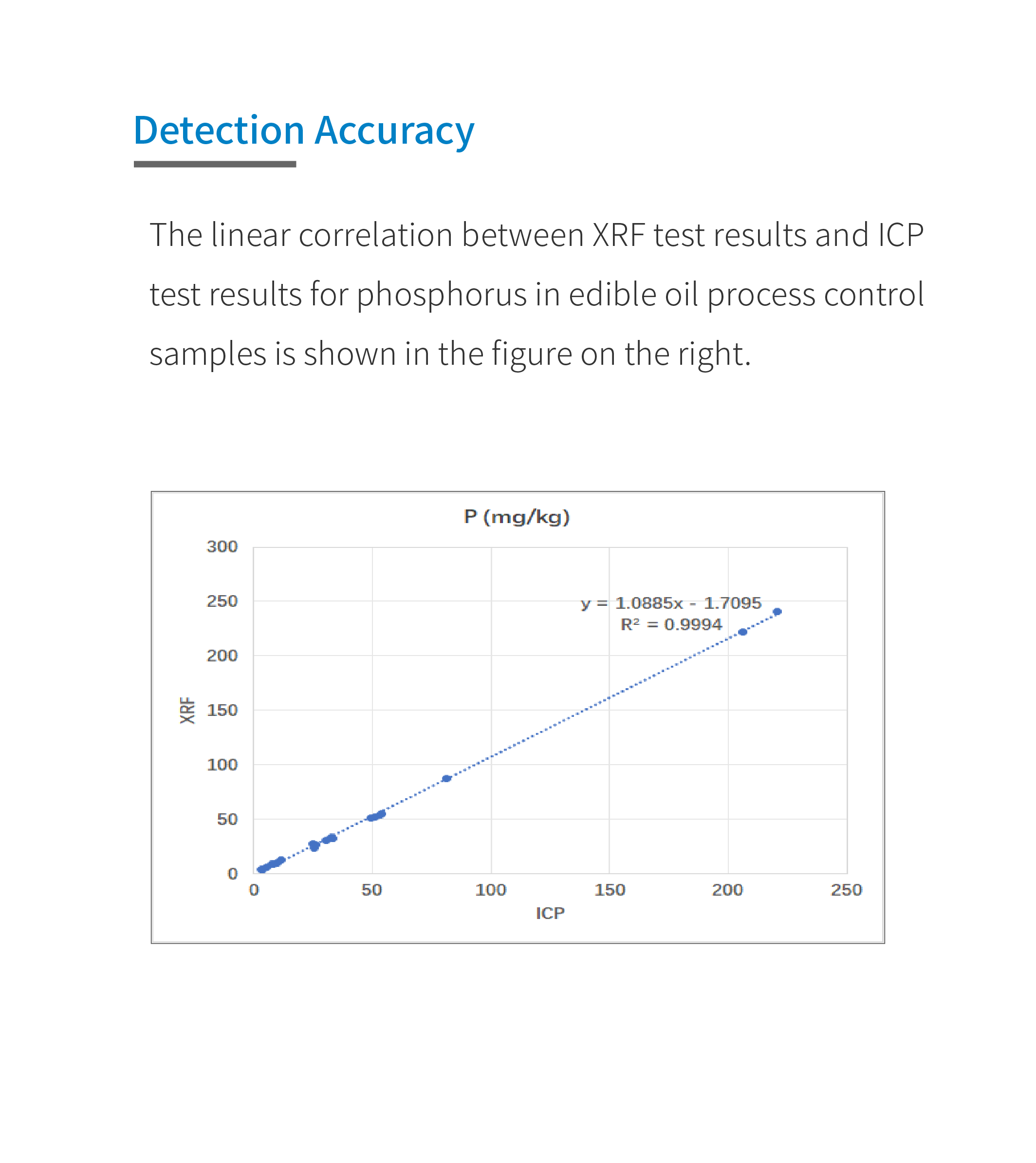

The E‑light enables reliable and accurate quantitative analysis of phosphorus in edible oil, with detection limits in the mg/kg range.
Technical Specifications
Measurement Module：Phosphorus in edible oils; Chlorine in edible oils (optional)
Detection Element：P
Detector：High-resolution Silicon Drift Detector
I/O Port：Ethernet 10‒100 Mbps,USB
Sample Type：Liquid
X-ray Excitation Source：Tube voltage 30kV, Power 30W
Data Storage & Output：vInternal storage, printout, Ethernet, USB, Wi-Fi
Operating Temperature：-5℃-45°C
Measurement Time：30‒1200 seconds
Optical system：Doubly Curved Crystal (DCC)
Instruments Weight：＜13kg
Dimensions：325mm L x 455mm W x 355mm H
