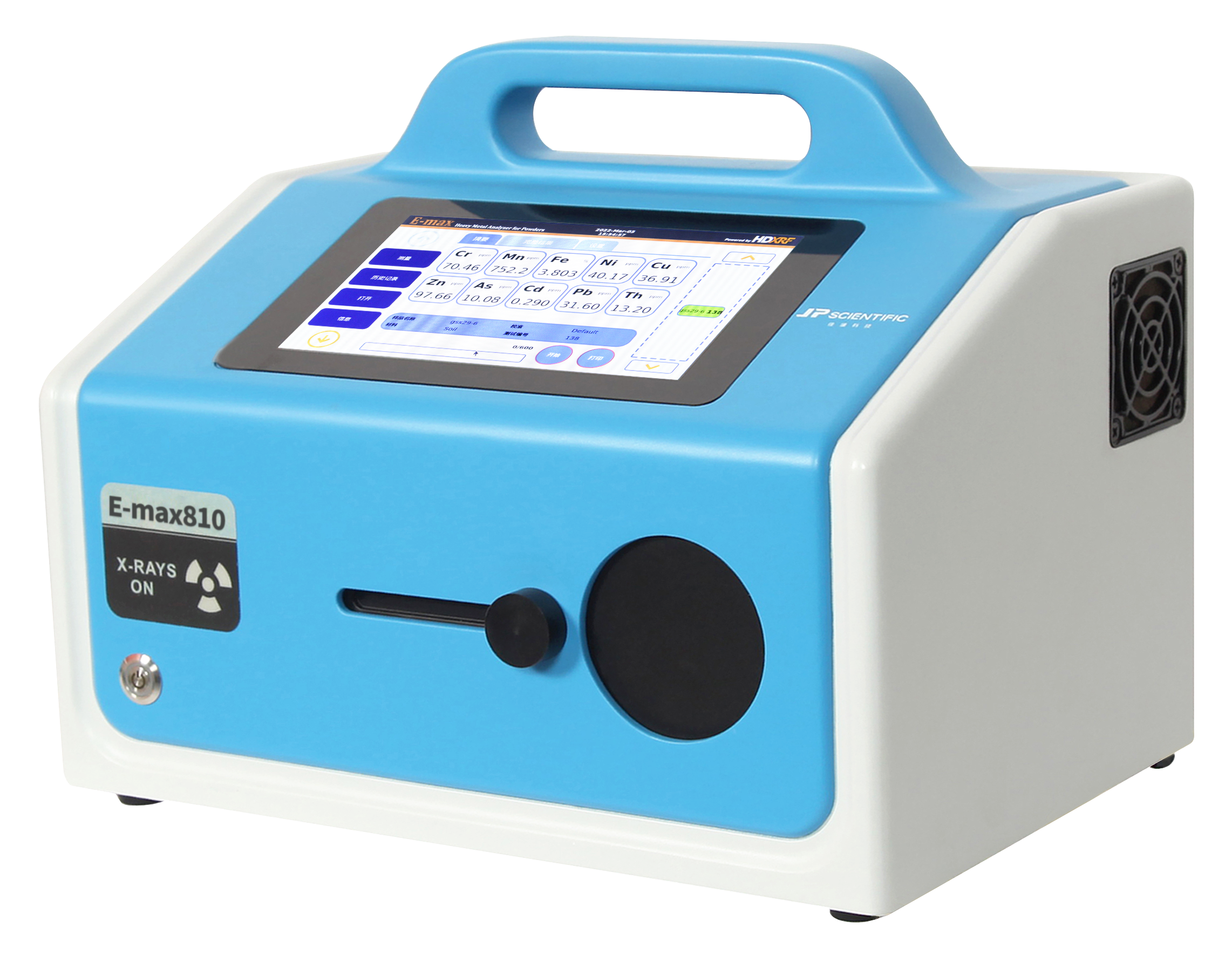

E-max810 Series

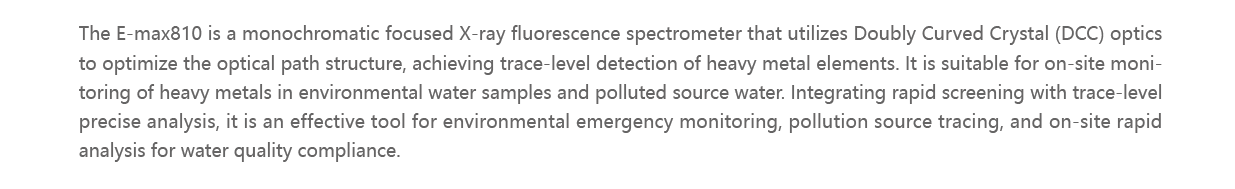

The E‑max810 is a monochromatic focusing X‑ray fluorescence spectrometer. It incorporates a hyperbolic curved crystal optical path configuration designed to enable trace‑level detection of heavy metal elements.
The system is well‑suited for on‑site monitoring of heavy metal elements in environmental water samples and those from pollution sources. It integrates rapid screening with precise trace analysis, offering a practical solution for environmental emergency monitoring, pollution source investigation, and on‑site water quality compliance assessment.
The system enables on‑site analysis with laboratory‑grade performance, offering improved safety features relative to handheld devices and enhanced portability compared with conventional benchtop instruments.
The E‑max products are designed for efficient and convenient operation in both laboratory and outdoor settings, enabling users to take appropriate actions in a timely manner based on on‑site analytical results.
Product features
The system incorporates a dedicated air‑duct cooling design, which helps maintain stable component temperatures during extended operation and supports reliable data acquisition.
The system supports qualitative and quantitative analysis of up to 40 heavy metal elements in soil samples, with measurement times ranging from 30 to 600 seconds.
The instrument has received radiation safety dose certification, supporting safe and reliable operation in routine use.
The side‑sampling design helps contain sample leakage and reduces the frequency of window film replacements, supporting reliable and low‑maintenance operation.
The sample cup design supports simplified sample introduction and collection, requiring lower sample volumes and offering a straightforward on‑site preparation process.
The optical path design supports improved detection accuracy and reduced measurement errors.

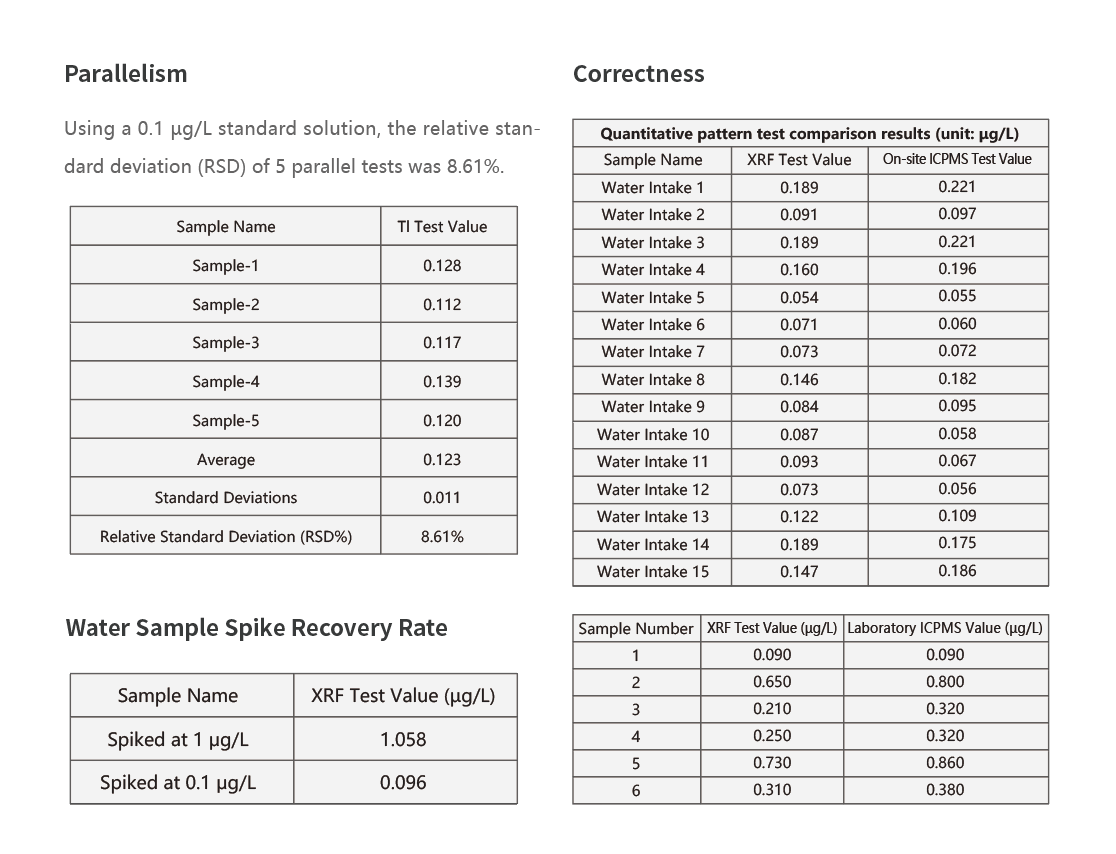

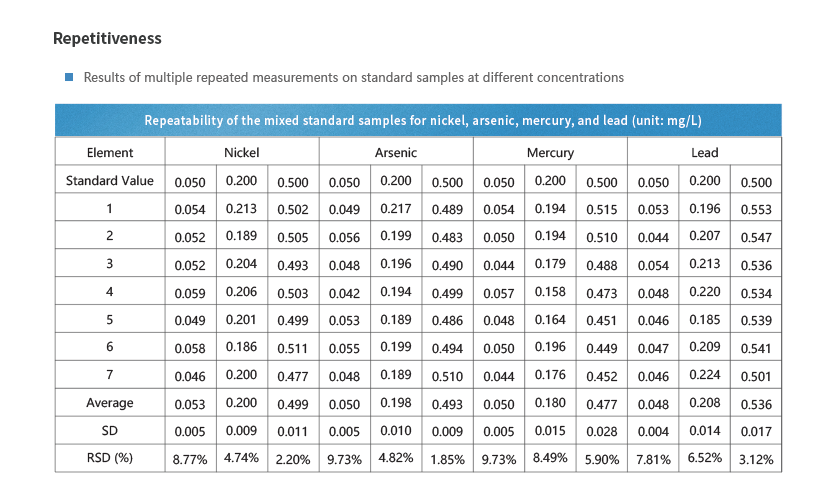

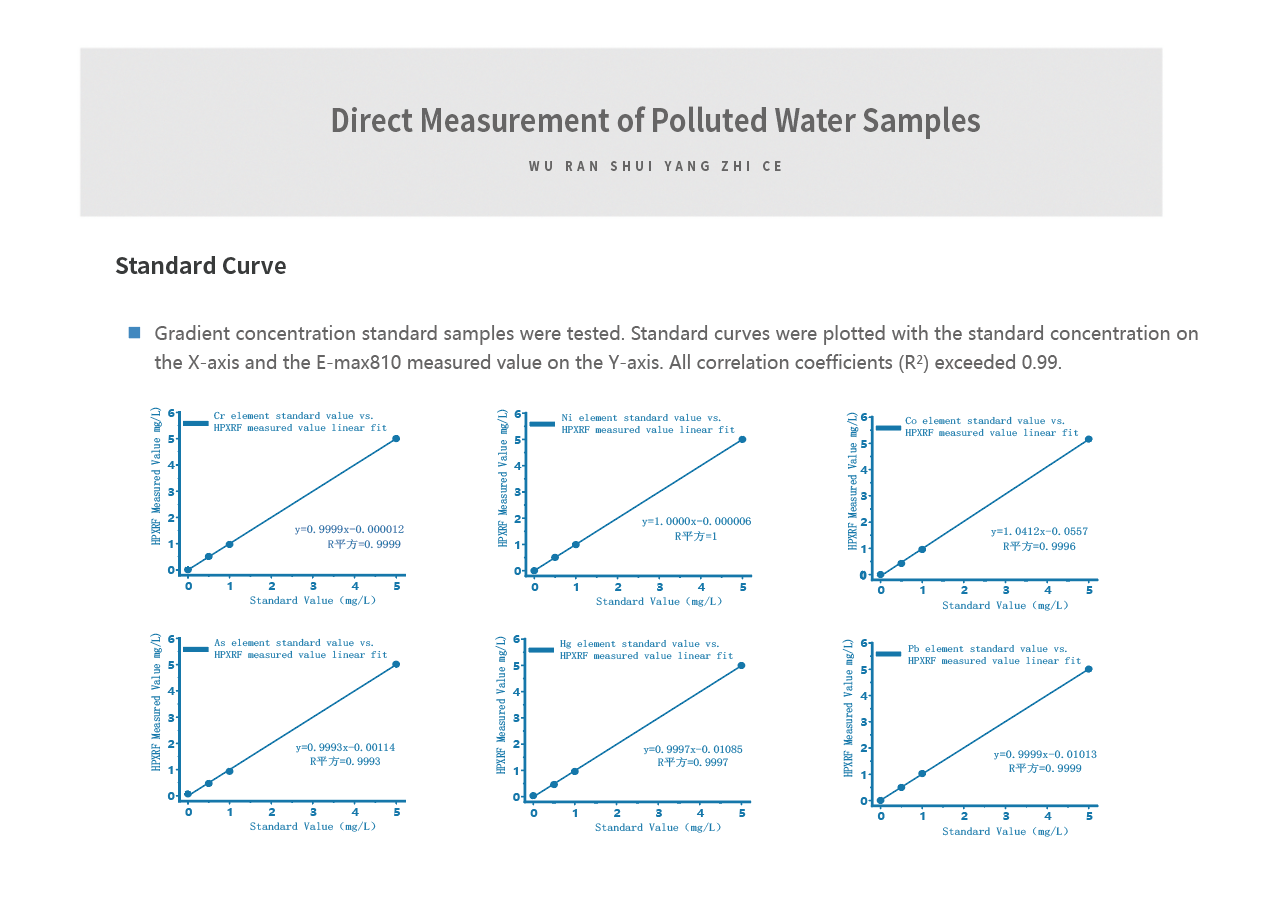

Performance data

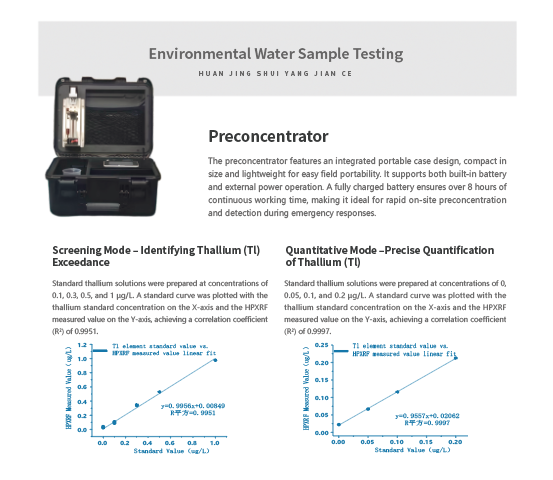

Application Instructions
Technical Specifications
X-Ray Tube：50 kV, 1 mA
Detector：Fast SDD Detector
Optical System：Doubly Curved Crystal – DCC
Measured Elements：Cr, Mn, Fe, Co, Ni, Cu, Zn, As, Se, Hg, Tl, Pb, Bi, etc.
Measurement Time：30–1200 Seconds
Measurement Module：Optional for sewage, surface water, and soil.
Operating Temperature：-5–50°C
Power Supply：110–240 VAC ±10%,50–60 Hz
Weight：≤10 kg
Dimensions：32 cm L x 24 cm W x 26 cm H
