E-lite500
视频展示
Suitable for rapid analysis of sulfur elements in gasoline, diesel and other oil products. The analysis of total sulfur content covers a wide range of applications from ultra-low sulfur fuel to crude oil.
Suitable for use in oil refinery laboratories, pipeline terminals, ships, additive plants, inspection vehicles and inspection laboratories, etc.
E-lite not only can conduct sulfur analysis, but also can quickly detect elements ranging from magnesium to calcium. It is particularly suitable for detecting major elements such as calcium, potassium, chlorine and phosphorus at the ppm level.
Transferring data via USB and integrating with LIMS will become very easy. Data can be transferred through USB and other means, and LIMS integration can be achieved.
Product features
E-lite employs advanced hyperbolic curved crystal technology, which reduces background noise, significantly improves signal-to-noise ratio, and enhances the accuracy of product analysis.
The instrument is equipped with an innovative sample introduction system, which can collect accidentally spilled samples in the oil collection tray, thus preventing the spilled oil from coming into contact with the valuable components.
E-lite not only can conduct sulfur analysis, but also can quickly detect elements ranging from magnesium to calcium. It is particularly suitable for detecting major elements such as calcium, potassium, chlorine and phosphorus at the ppm level.
Performance data

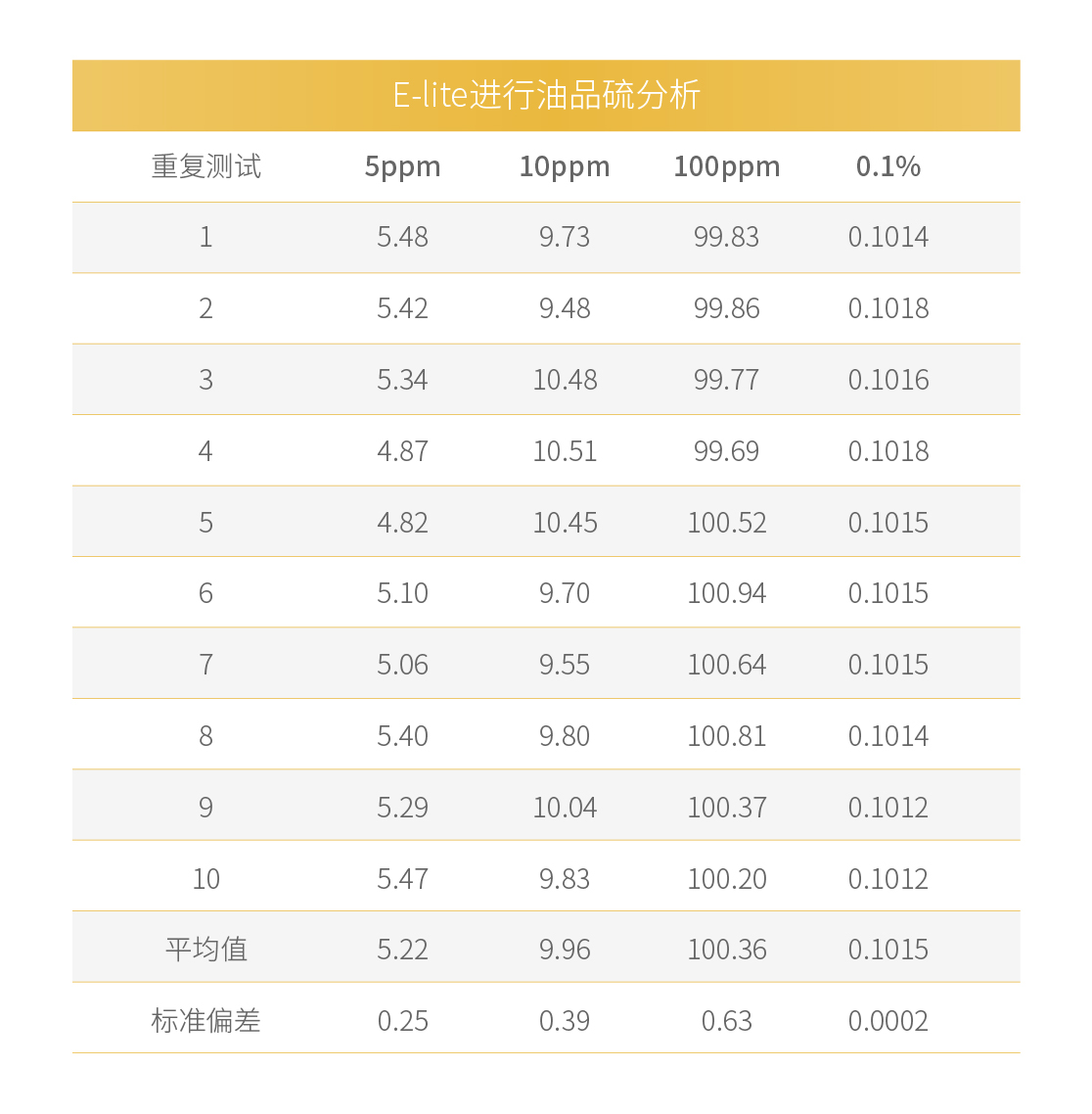

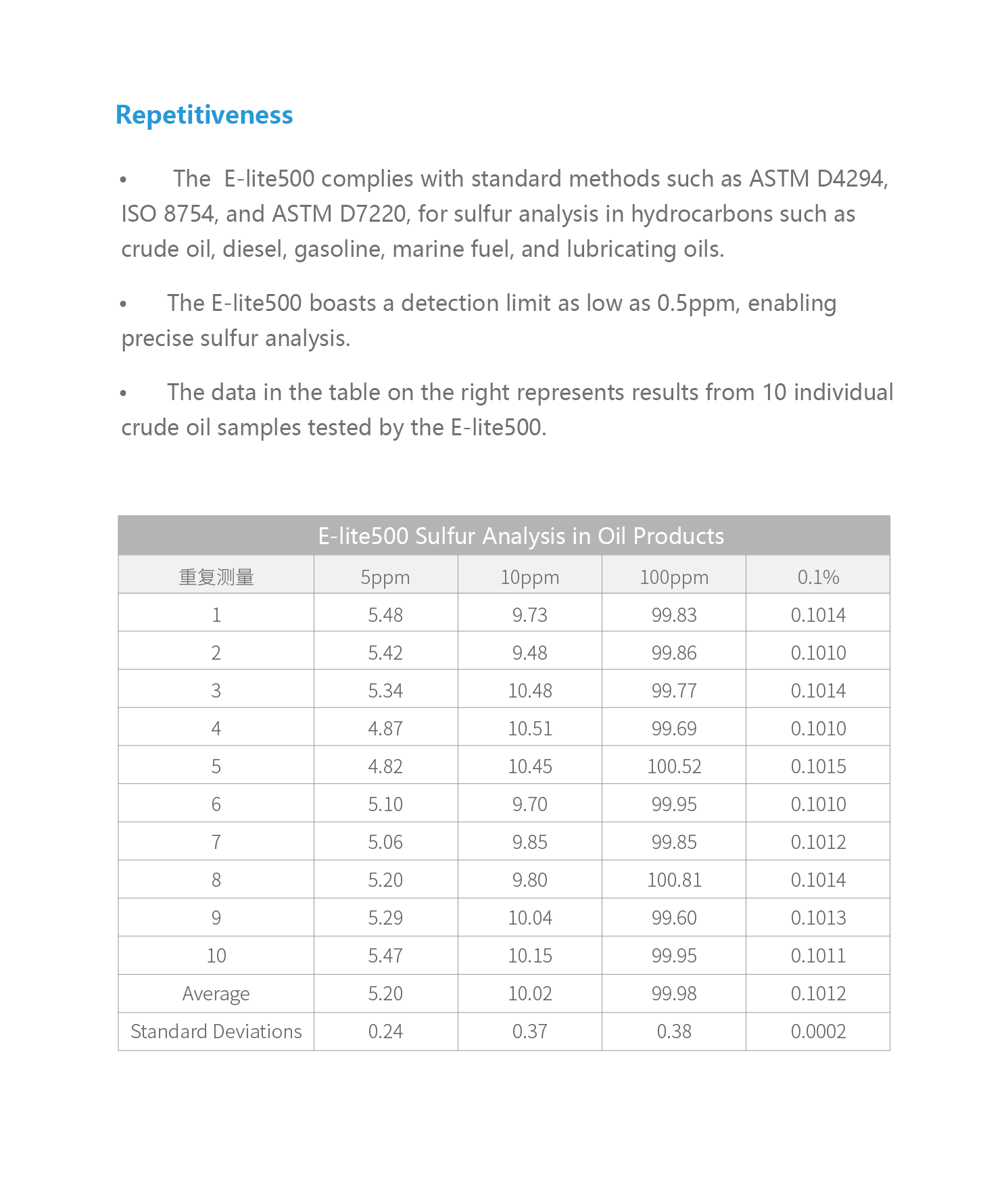

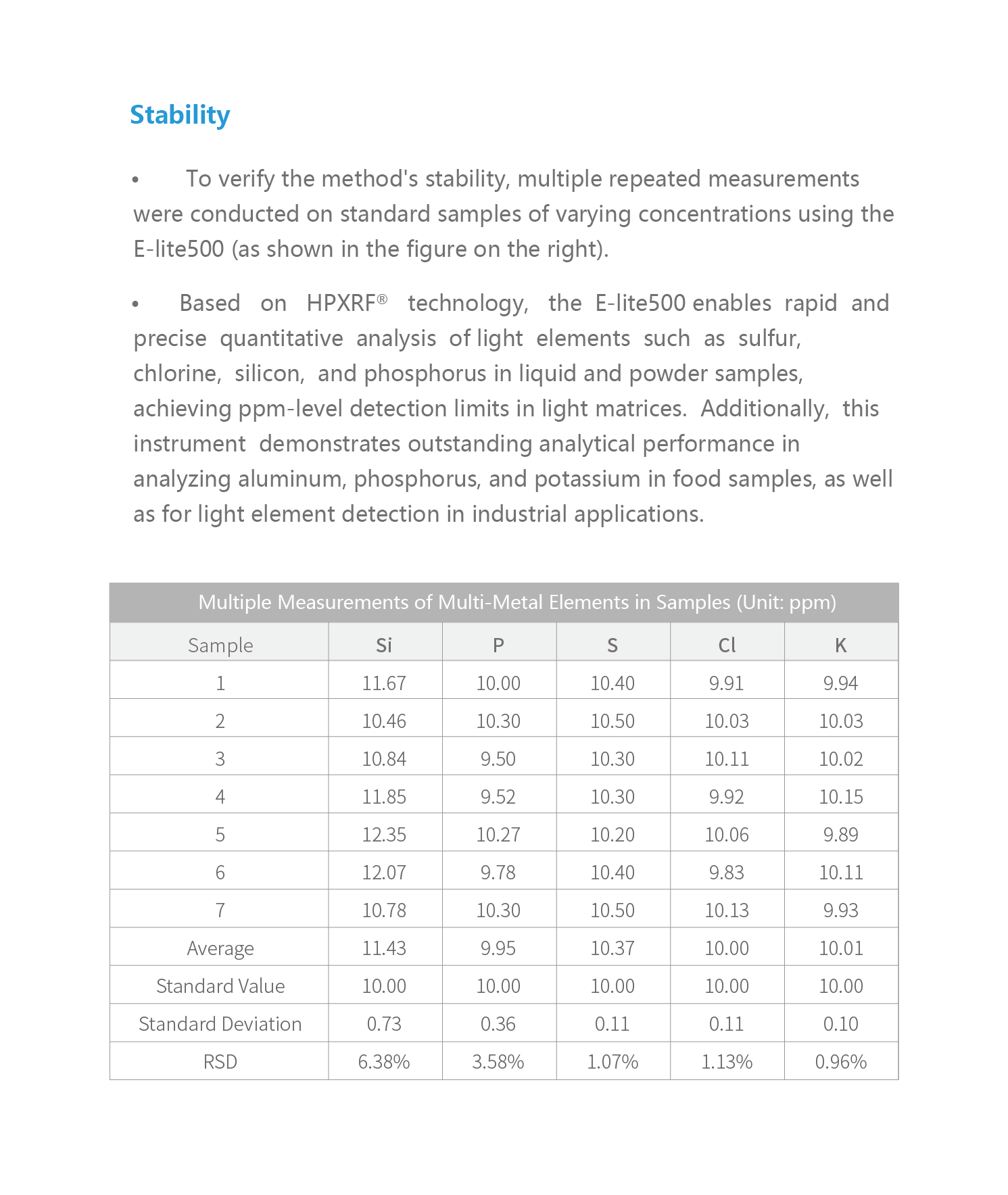

High reliability and high stability

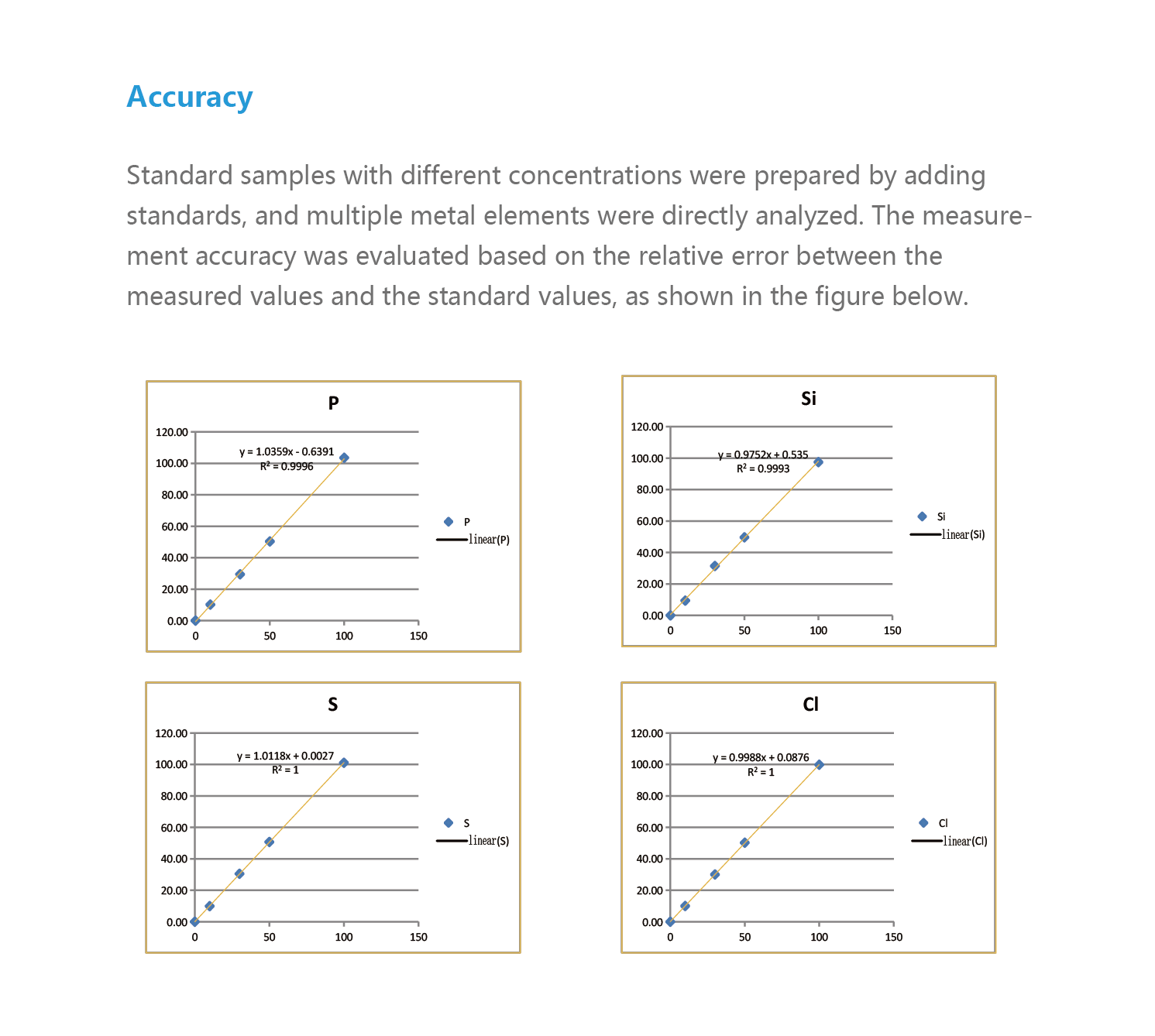

Accuracy data
Technical Specifications
Measurement Time：30-1200 seconds
Element Range：8 elements between Mg and Ca
Data Storage and Output：Print Output, Ethernet, USB, Internal Storage, USB Drive
Sample Type：Liquids, Solid Powders, etc.
Source：110-240 VAC±10%，50-60Hz
Weight：＜10kg
Operating Temperature：-5℃-45°C
Operating Humidity：30-85%
X-ray Excitation Source：Tube voltage: 30 kV, Power: 30 W
Detector：High-resolution Silicon Drift Detector
Crystal：Double Curvature Crystal (DCC)
Dimensions：238mm W x 350mm L x 260mm H
