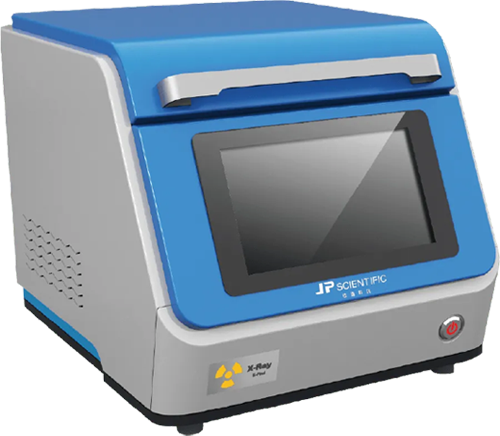

E-find M300

视频展示

The E‑find instrument is capable of reliable analysis across a wide range of mineral types and their constituent elements, supporting efficient quality evaluation of raw materials or mineral samples.

For various mineral types, matrix effects are corrected using the Fundamental Parameter method, enabling reliable test results with straightforward sample preparation. The obtained data show good agreement with laboratory‑based reference results.

Supports rapid and reliable analysis of metal elements including iron, calcium, copper, and manganese, along with non‑metal elements such as phosphorus, sulfur, and silicon in mineral samples.

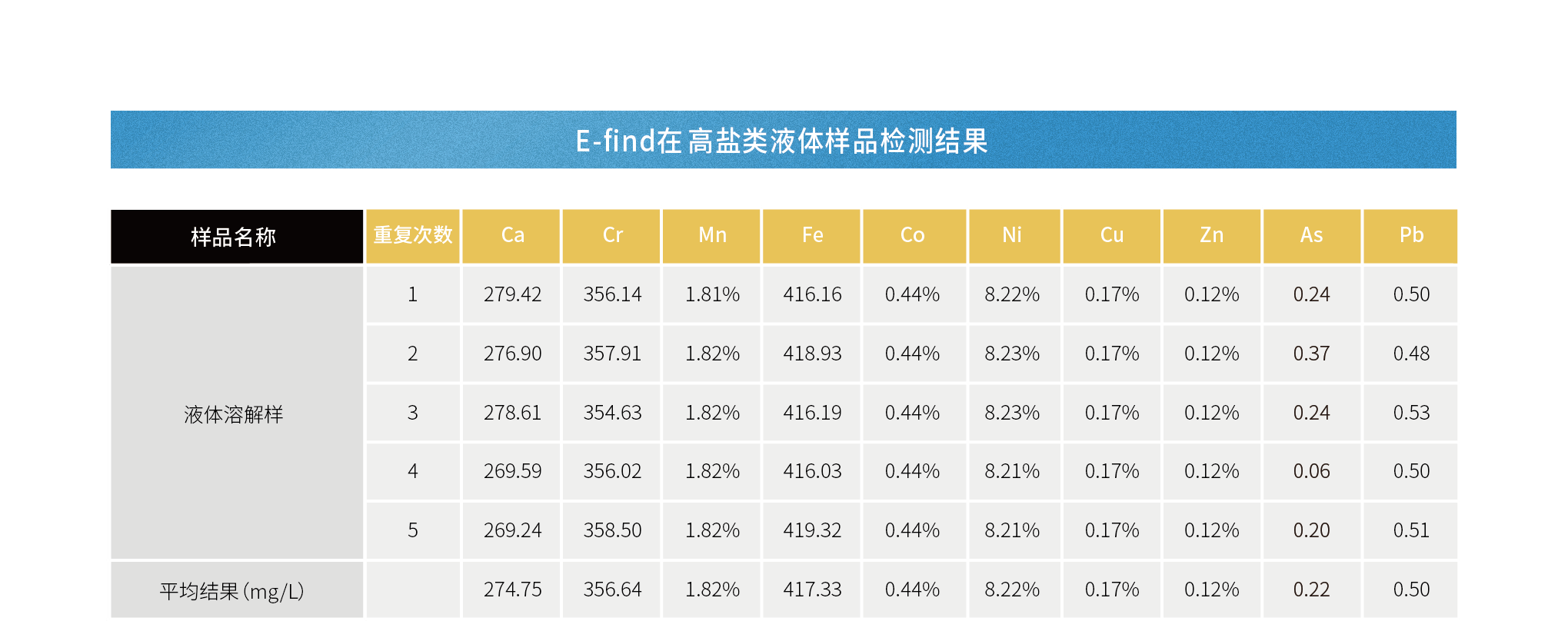

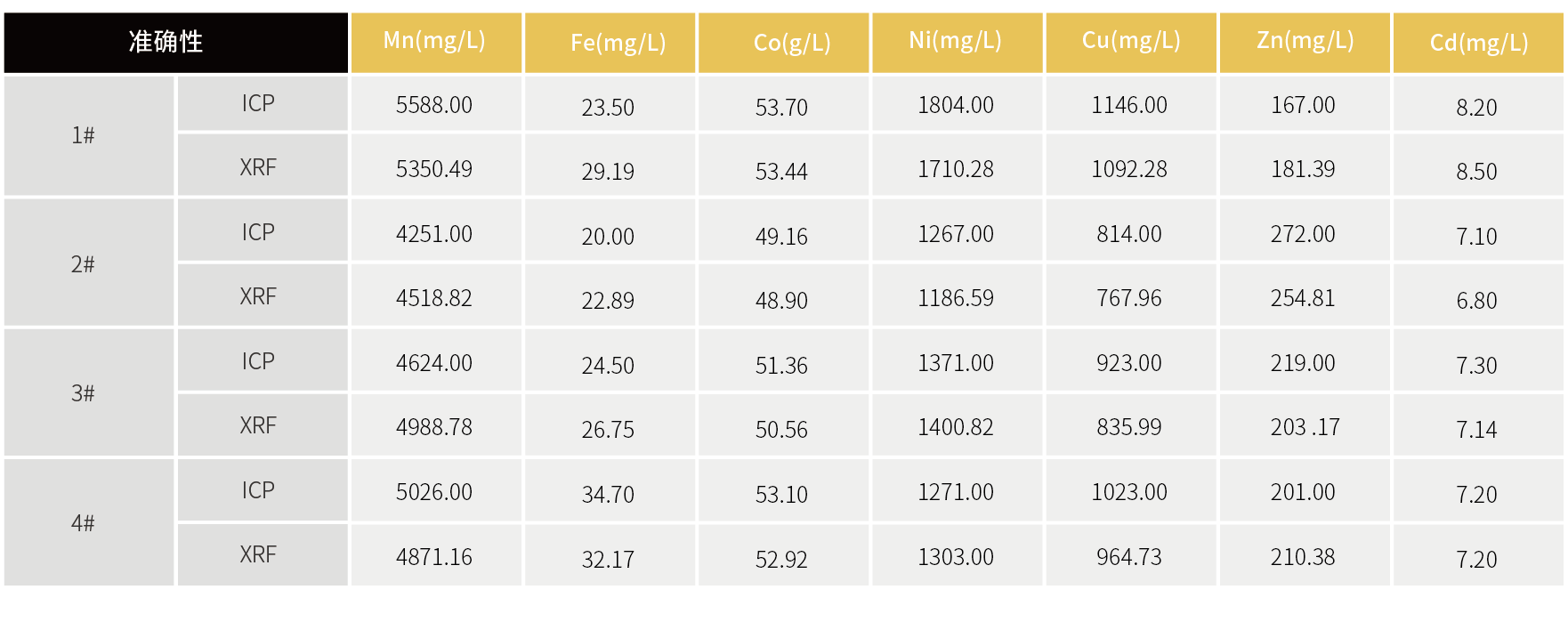

Supports accurate quantitative analysis of both trace and major elements in various materials, and is applicable to the analysis of cobalt sulfate, manganese sulfate, nickel sulfate, and other samples in liquid, solid, or powder forms.

Product features

The single‑wavelength excitation technology, in combination with the integrated software algorithms, supports improved detection accuracy and reduced measurement errors.
Its compact design makes it well‑suited for field deployment, enabling convenient on‑site analysis across a range of operating environments.
The system integrates an embedded platform, a high‑resolution LCD touchscreen, and digital multi‑channel technology, offering reliable data processing and user interaction.
The system offers a data storage capacity that supports continuous recording of up to 10,000 detection records.
The system supports improved data transmission and computing performance, and provides exportable data in a comprehensive, user‑editable Excel format.
Offers Bluetooth printing support and enables remote data transmission via 4G and 5G networks.

Performance data

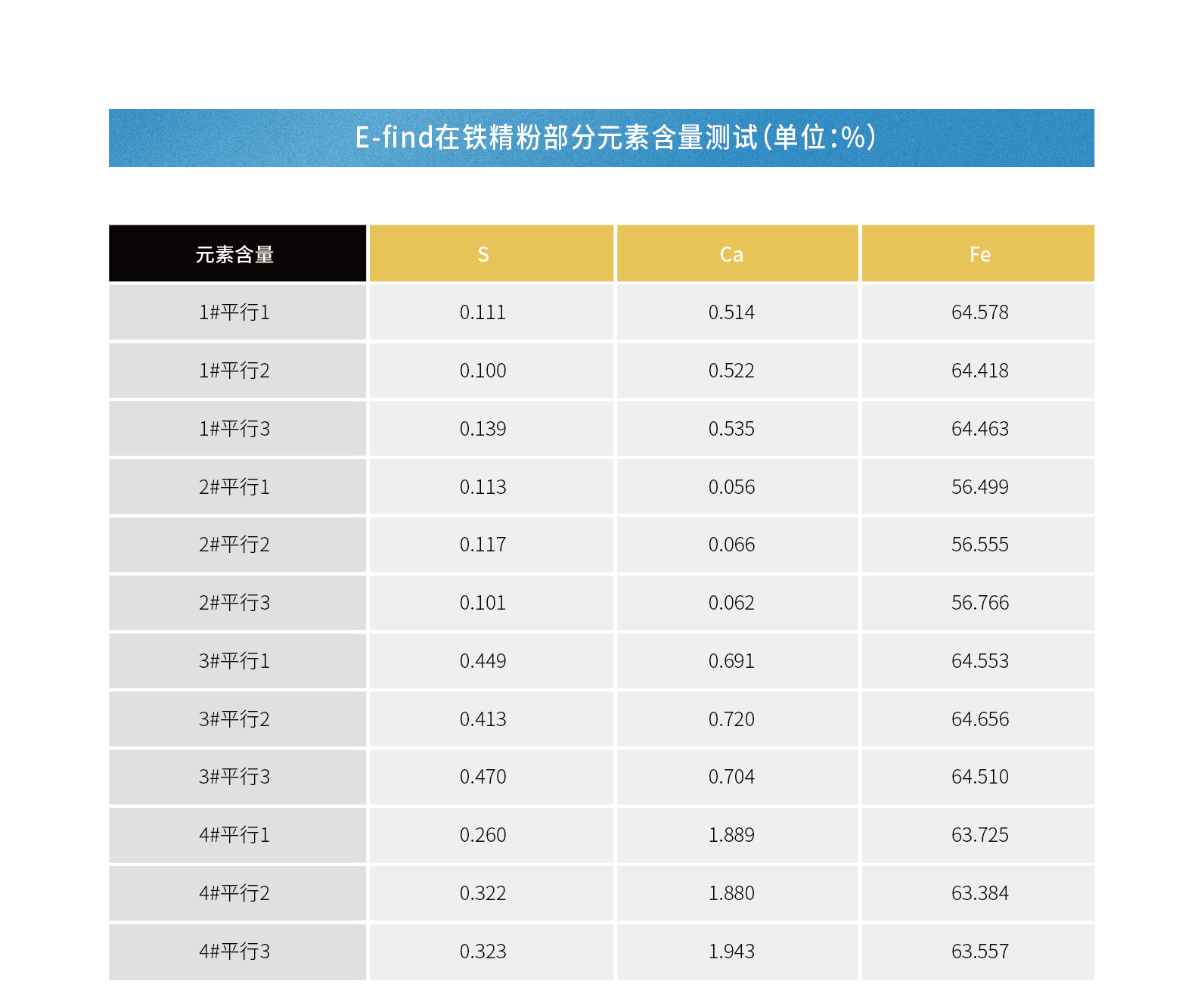

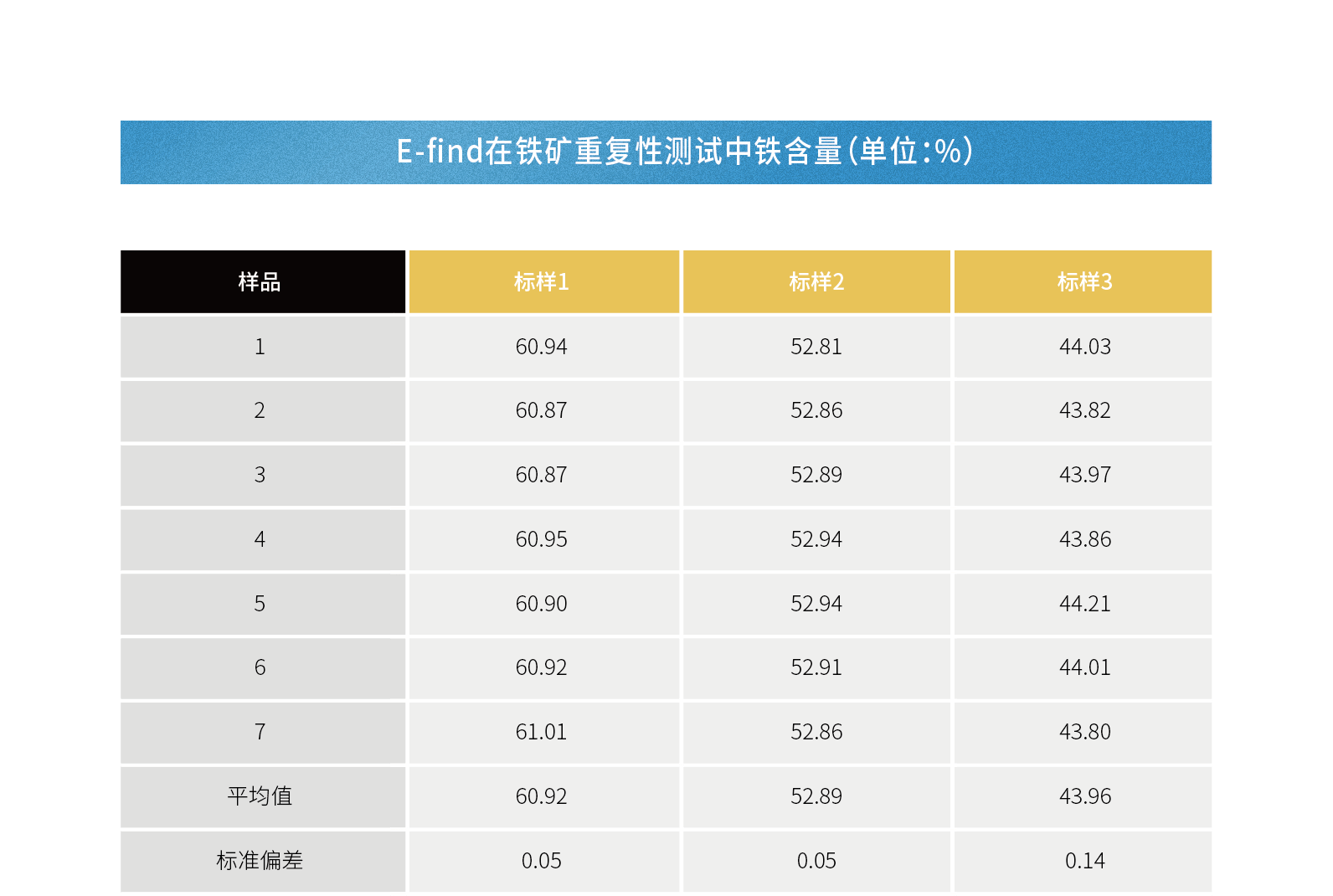

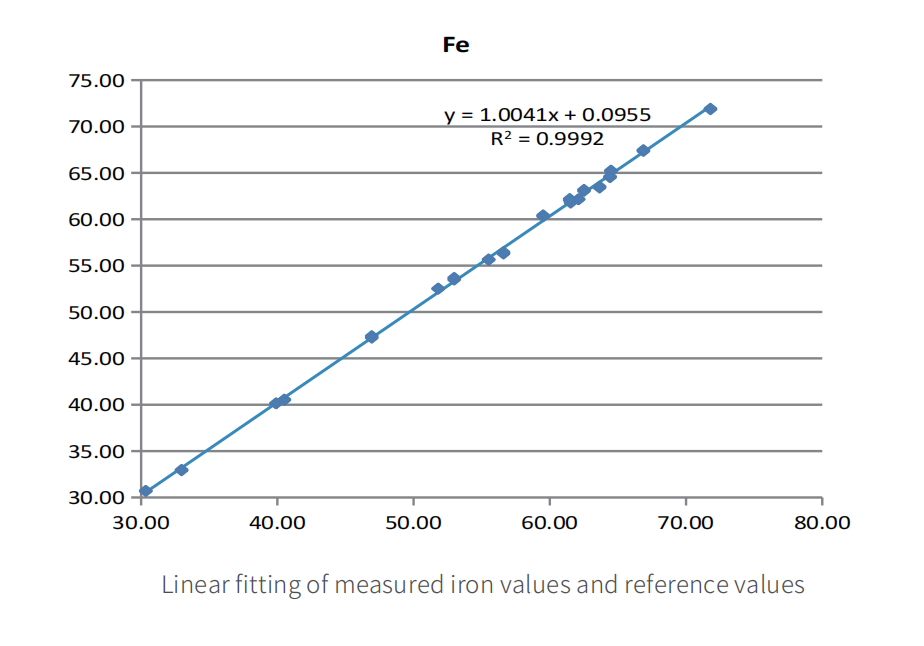

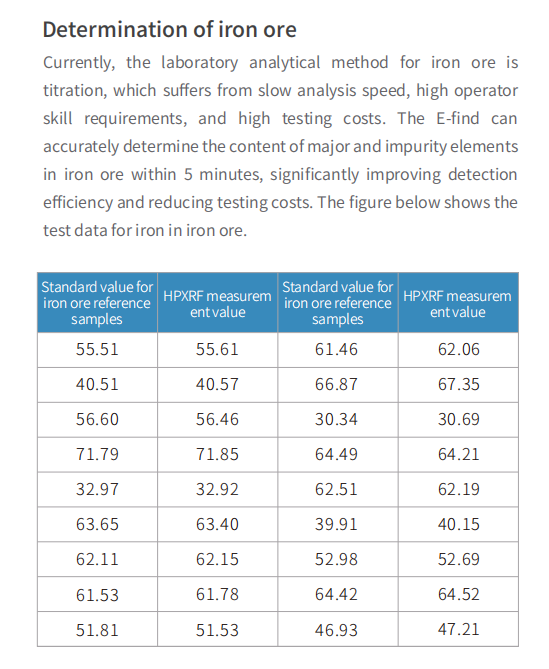

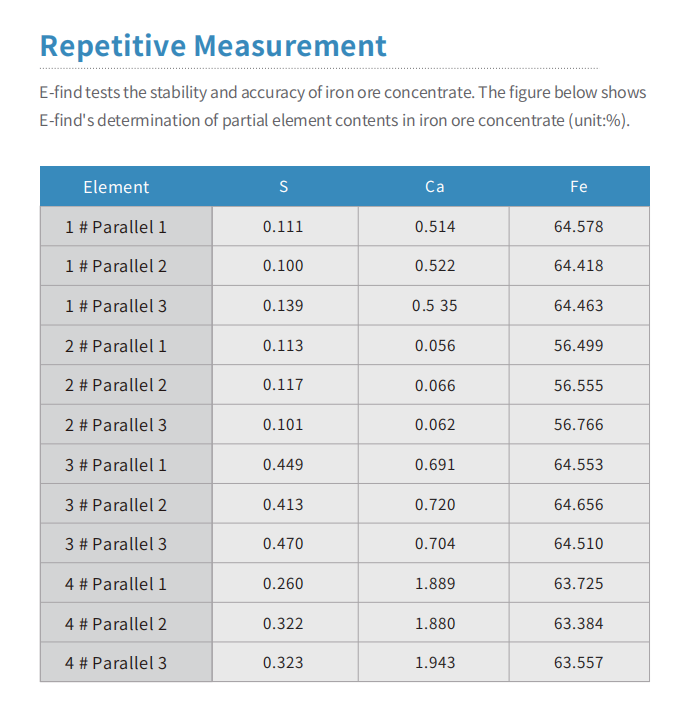

Determination of raw materials for steel metallurgy

The E‑find series offers reliable matrix correction for a wide range of mineral types, utilizing the Fundamental Parameter (FP) method.

技术参数

Subject Detection:Mineral Substance

Quiz Elements:More than 40 elements such as Al-U

Sample Platform:Standard Spin Module

Measuring Module:Solids、 Liquid

Excitation Source:X-ray tube ,50kV ,1mA

Detector:Fast SDD Detector

Measurement Time:30 seconds - 1200 seconds optional

Operating Temperature:-5°C~50℃

Weight:21.5Kg(excluding optional parts)

Dimensions:36.5(L)*34.0(W)*32.5(H)
