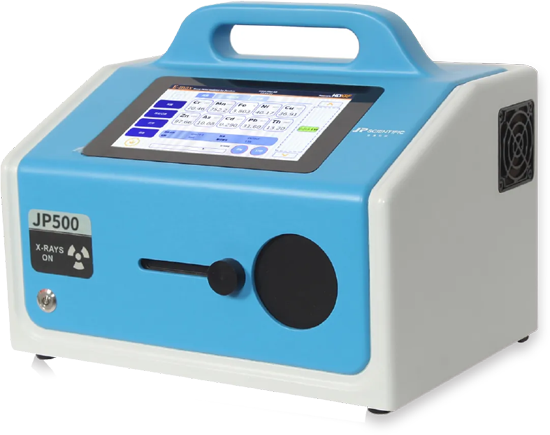

JP500
视频展示
The analyzer supports reliable detection and analysis of metal element content in a range of sample types, including food, fruits and vegetables, edible oil, water, and oil products.
With double‑surface curved crystal monochromatic focusing technology and the integrated FP software algorithm, the system enables accurate qualitative and quantitative analysis, and offers detection limits suitable for a wide range of routine and challenging testing applications.
Supports rapid detection of over 40 elements, including As, Ba, Co, Cr, Cu, Fe, Hg, Mn, Ni, Pb, Pd, Sb, Se, Sn, Ti, Tl, V, and Zn.
The system supports reliable detection of heavy metals in a variety of sample types, including food, pharmaceuticals, plants, groundwater, surface water, and industrial wastewater.
Product features
Sample preparation involves only grinding and pulverization, with no need for high‑temperature or strong‑acid digestion. The system supports a broad concentration range, from 20 μg/kg to 100%.
The system offers a cost‑effective analytical solution and does not require consumption of combustible gases, auxiliary gases, or argon during operation.
The system supports simultaneous analysis of multiple elements from solids, powders, and liquids in 1 to 3 minutes on site, using a non‑destructive approach that preserves sample integrity. It provides a practical analytical tool for field operators.

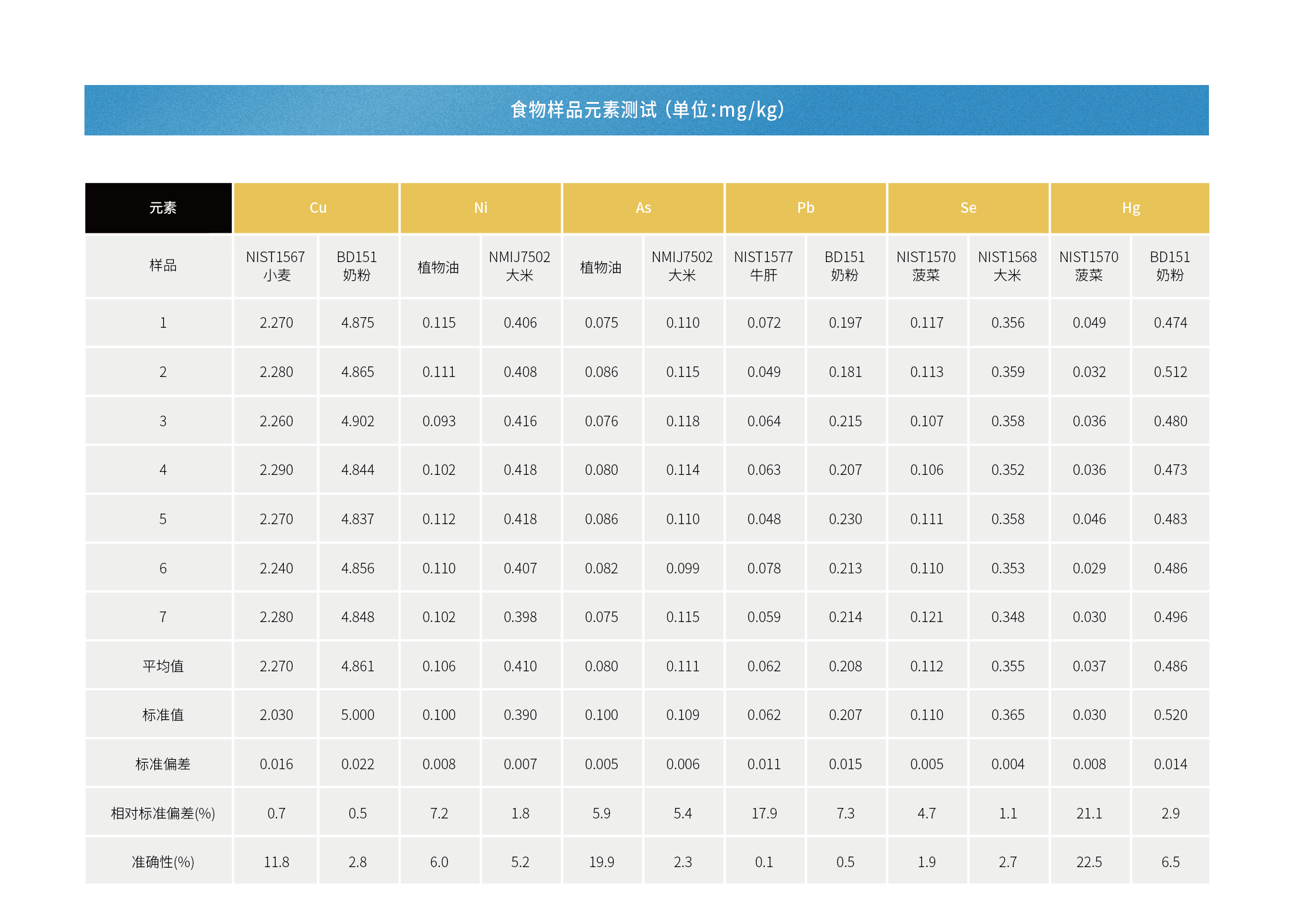

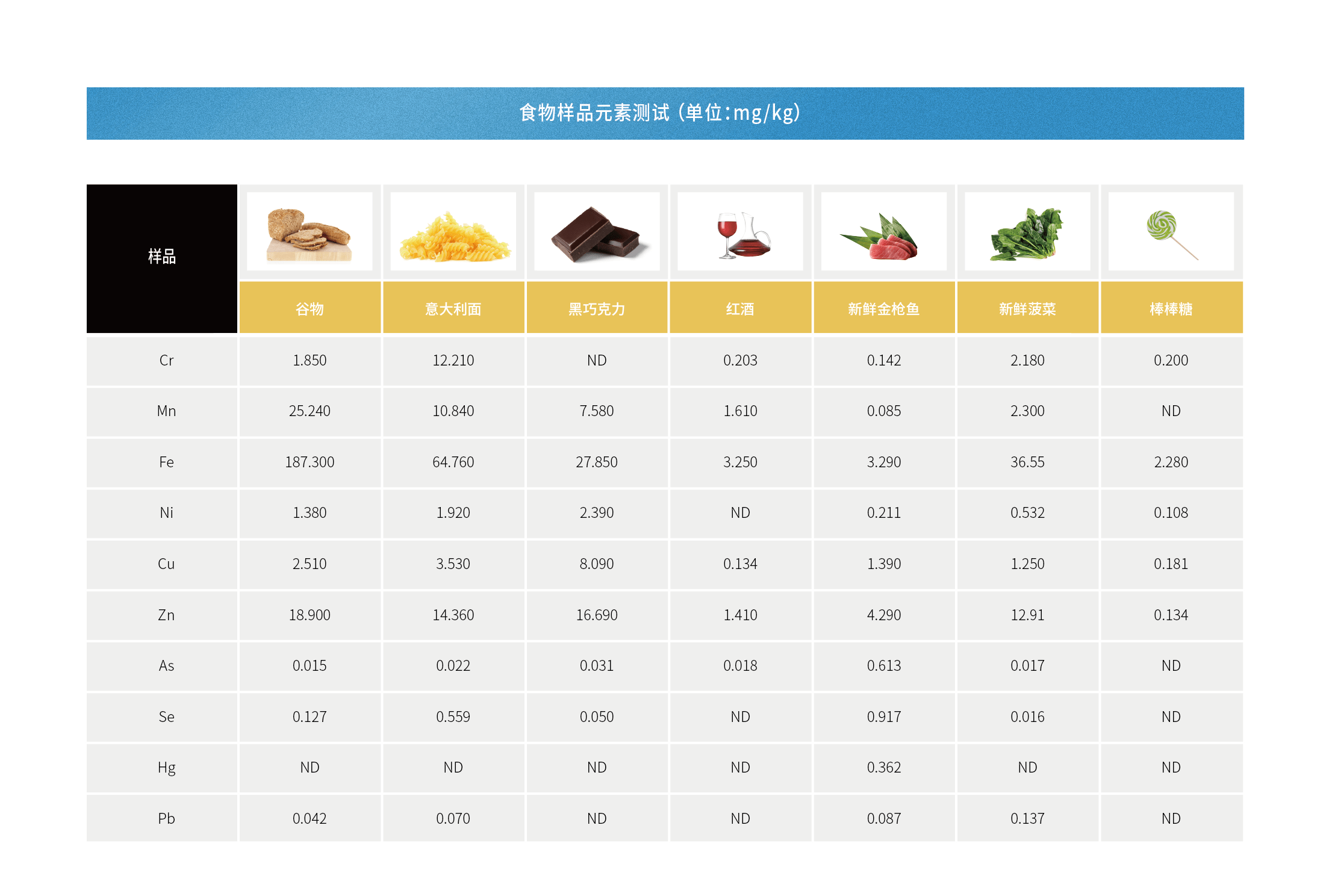

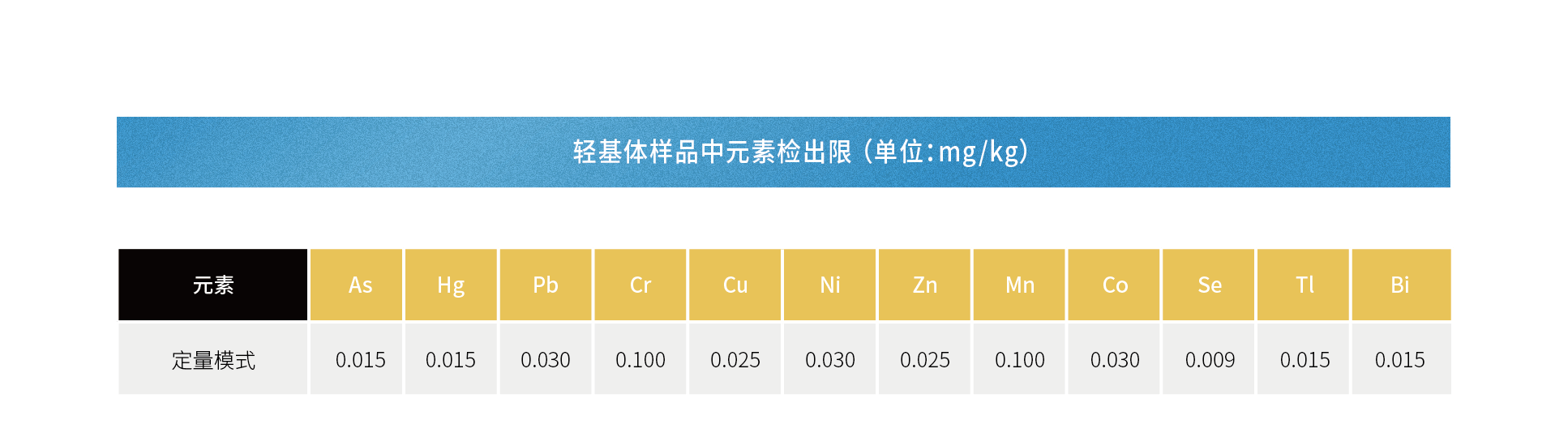

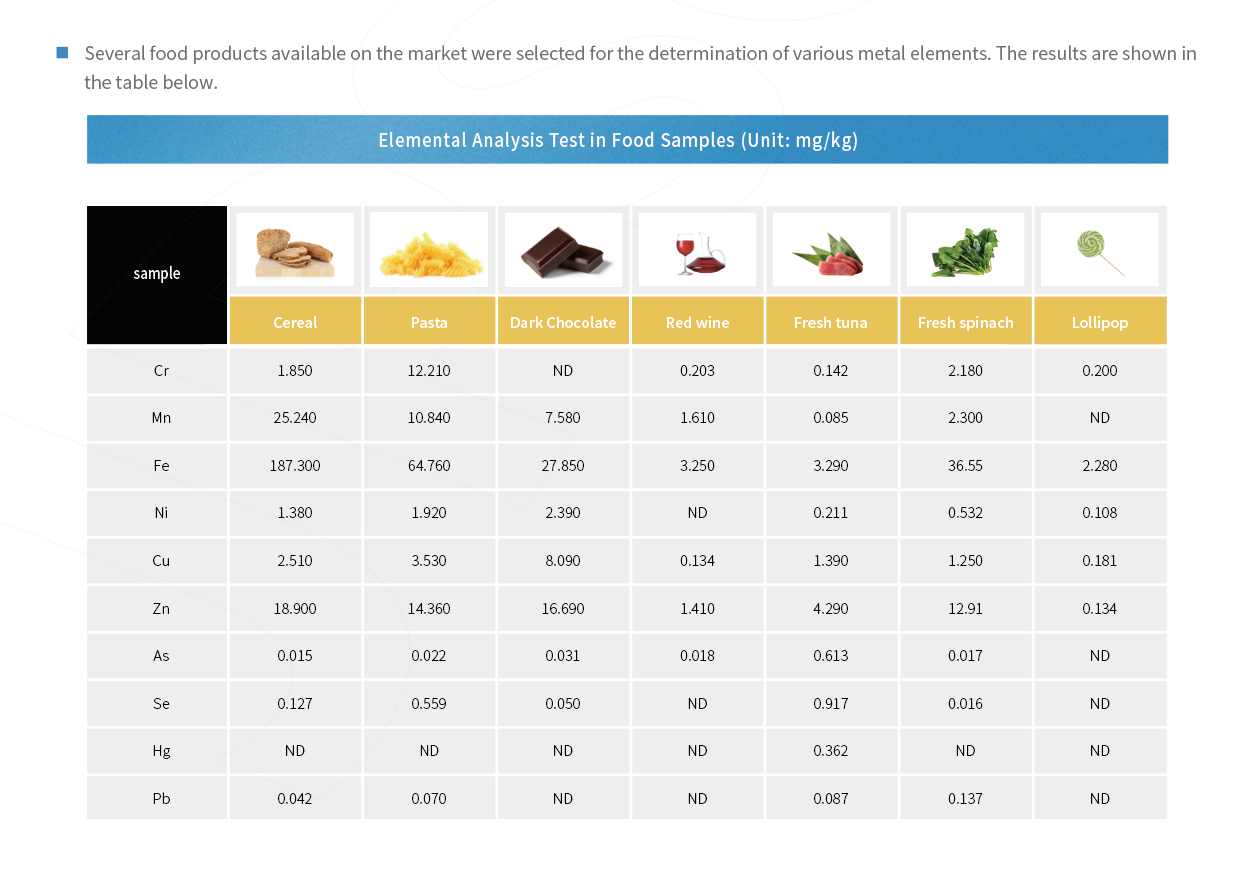

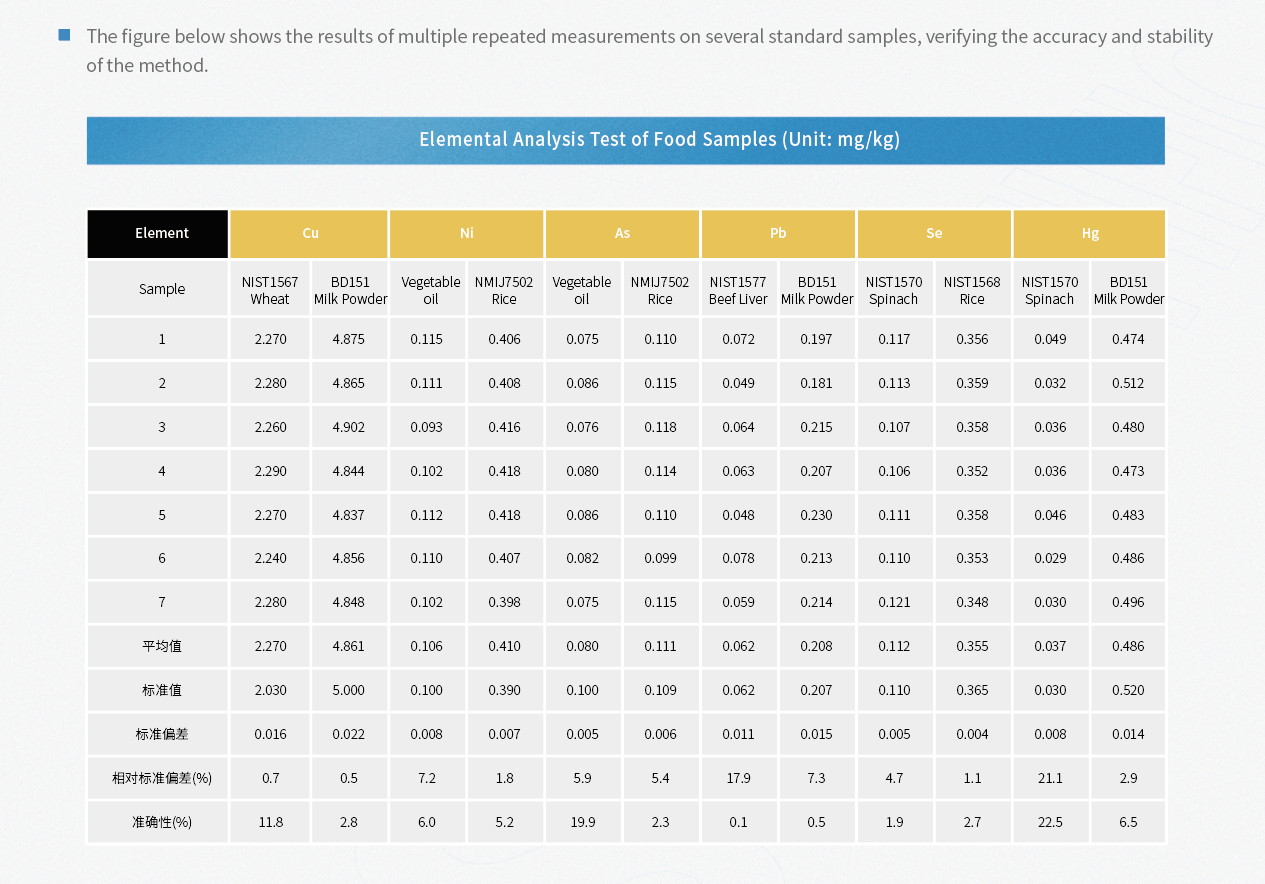

Performance data

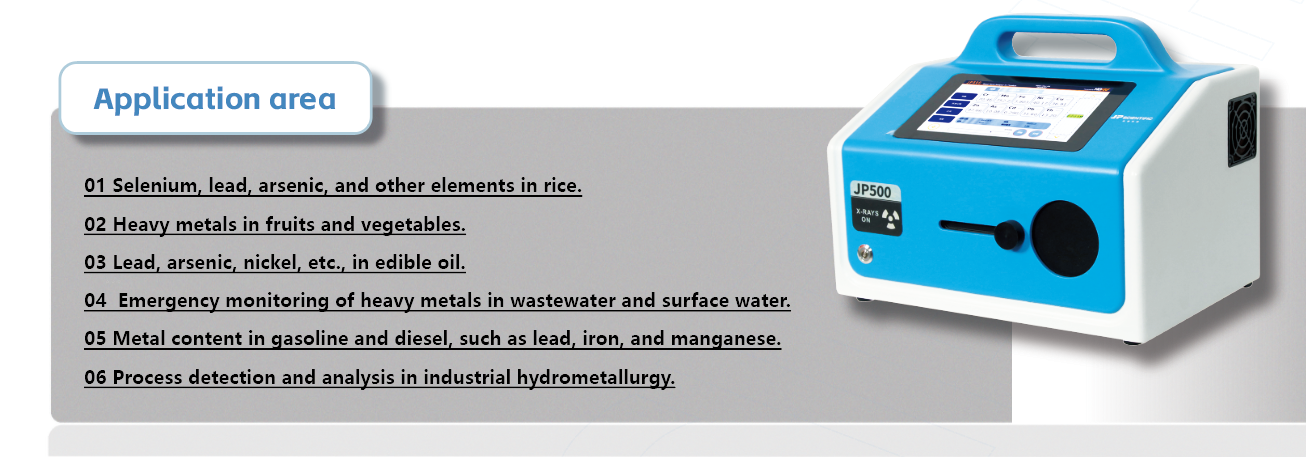

Application area
The JP500, based on HPXRF® technology, supports rapid and reliable analysis of trace elements including lead, arsenic, copper, and selenium in light matrices such as food, water, and edible oil, with detection limits in the ppb range.

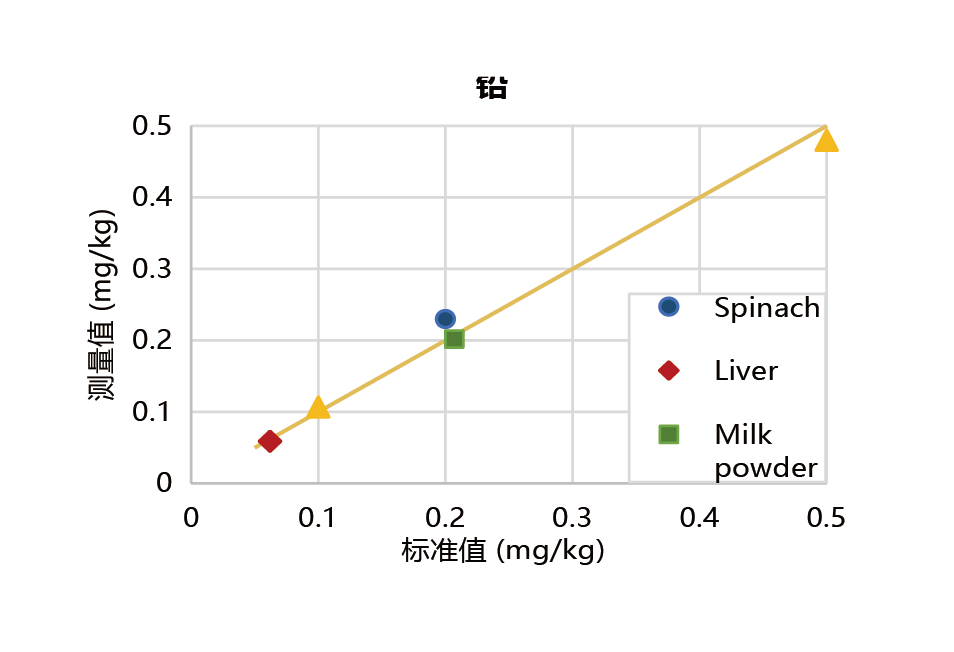

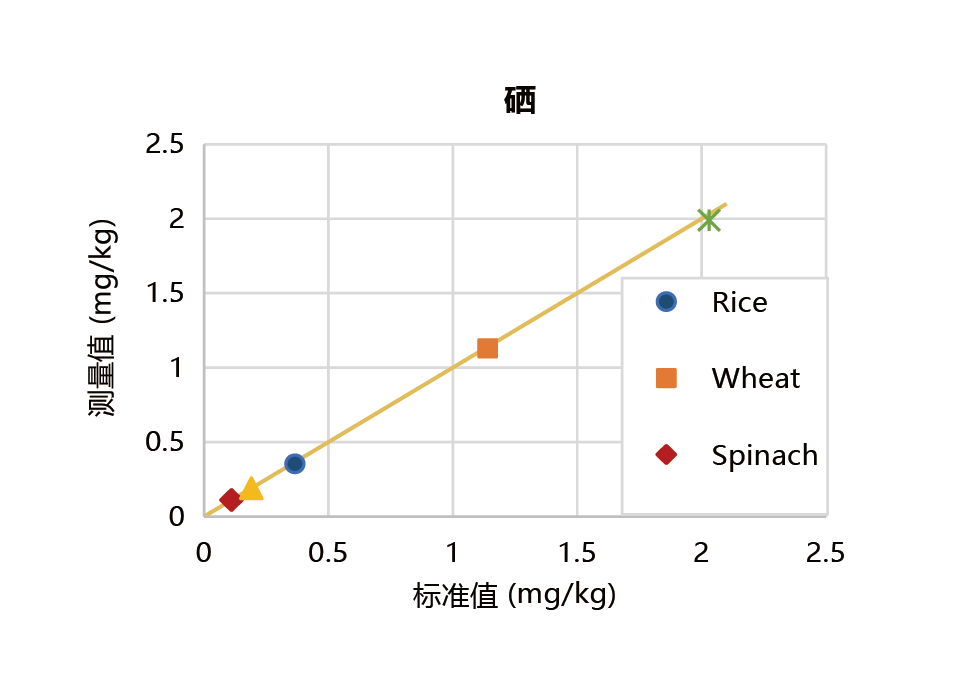

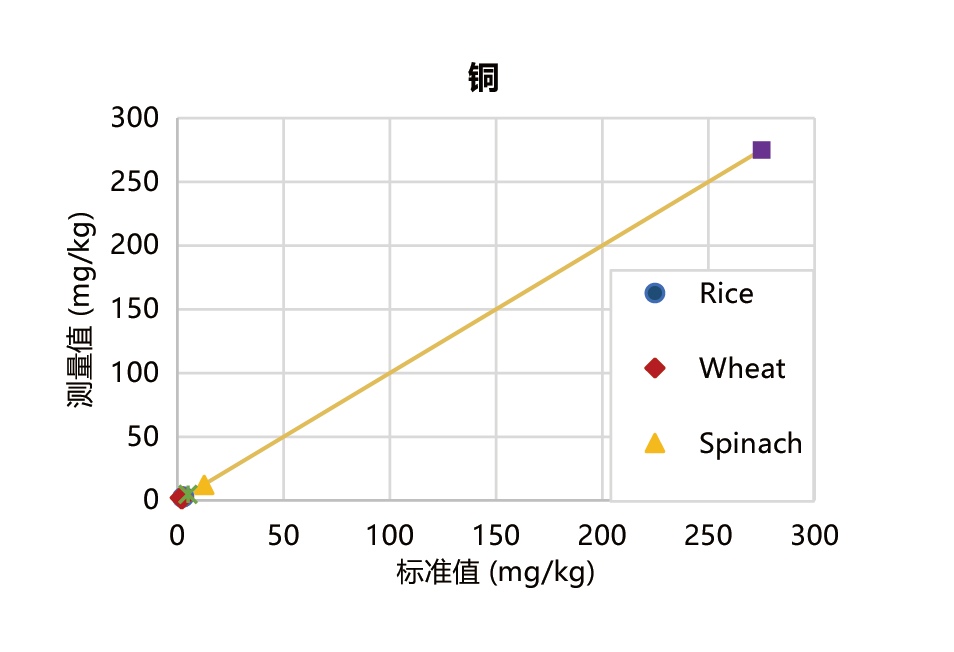

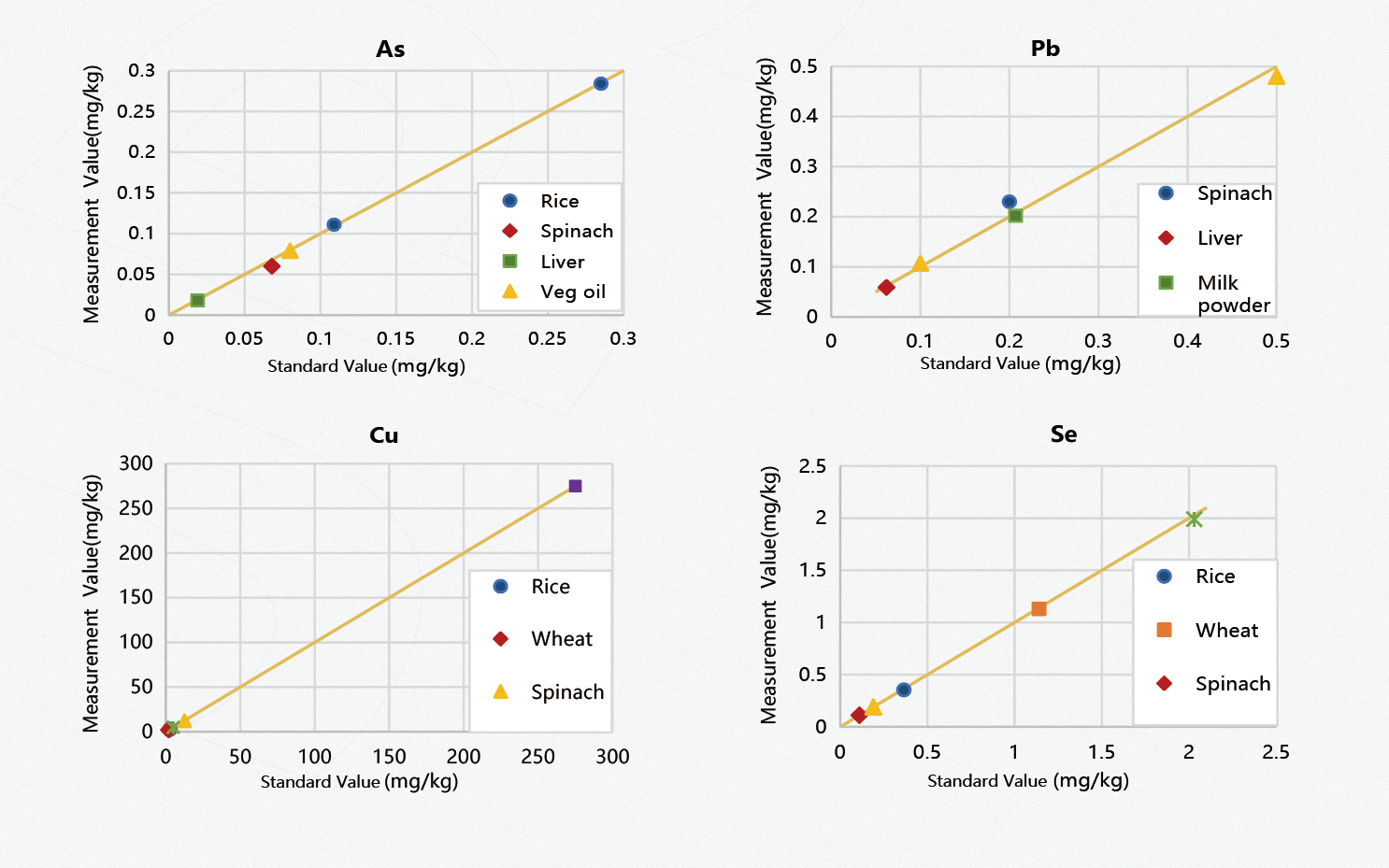

Curved graph
Technical Specifications
Compliance：GB2762-2017
Measurement Method：High-Performance X-ray Fluorescence Spectroscopy-HDXRF
X-ray Tube：50kV, 1mA
Detector：Fast SDD Detector
Measurement Module：Food, Water , Edible oil
Optical System：Doubly Curved Crystal ‒ DCC
Measurement Time：30s‒1200s (Selectable)
Measuring Range：Analytical Elements: Ni, Cu, Zn, As, Pb, etc.
Weight：<9 kg
Dimensions：32cm L *24cm W *26cm H
