The E‑max series meets the screening and control requirements for heavy metals in soil as specified in GB15618‑2018. For cadmium, the regulatory limit is 0.3 mg/kg, and the E‑max series provides a detection limit of 0.05 mg/kg, offering adequate sensitivity for routine compliance monitoring.
The system enables on‑site analysis with laboratory‑grade performance, offering improved safety relative to handheld devices, while being lighter and more portable than conventional benchtop instruments.
E‑max products are designed for use in both laboratory and outdoor environments, supporting efficient and convenient operation. This allows users to make timely decisions based on on‑site analytical results.

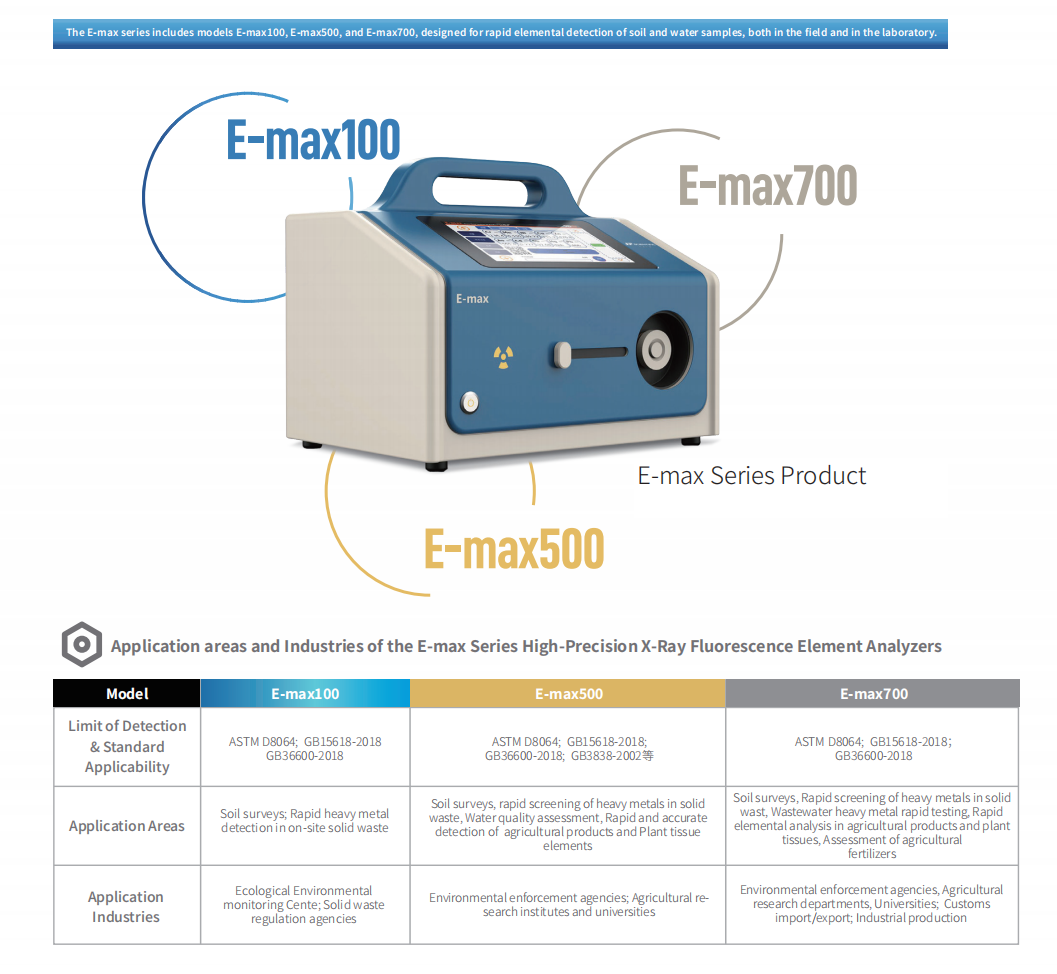

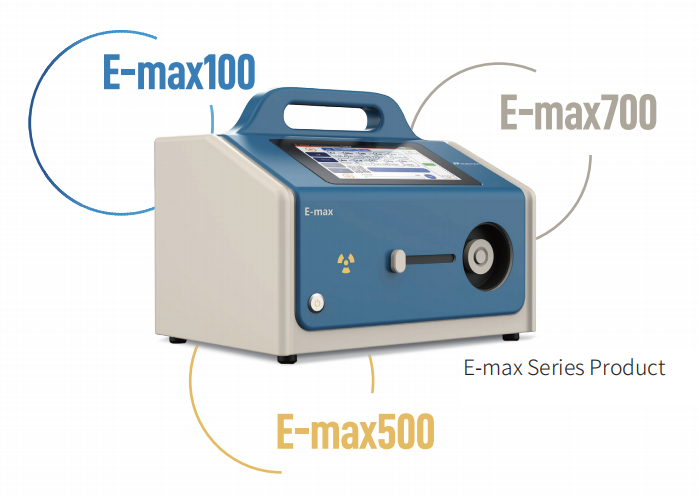

The E‑max series heavy metal analyzer incorporates single‑wavelength X‑ray fluorescence analysis technology. It delivers reliable analytical performance for a range of heavy metals in environmental soil samples, and shows particular sensitivity for cadmium.
Product features
The system employs a dedicated air‑duct cooling design, which helps maintain stable component temperatures during extended operation and supports reliable data acquisition.
The instrument has received radiation safety dose certification, supporting safe use in routine applications. The integrated side‑sampling design helps prevent sample leakage and reduces the frequency of window film replacements.
The system integrates an embedded platform, a high‑resolution LCD touchscreen, and digital multi‑channel technology, supporting improved data transmission and computational performance.

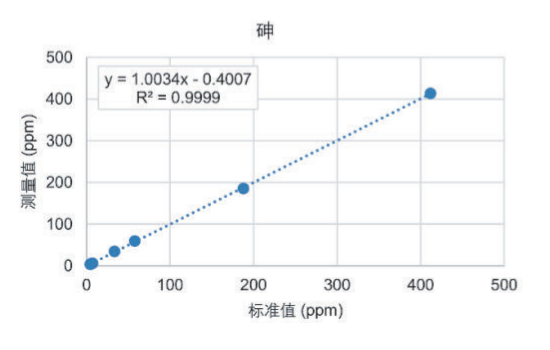

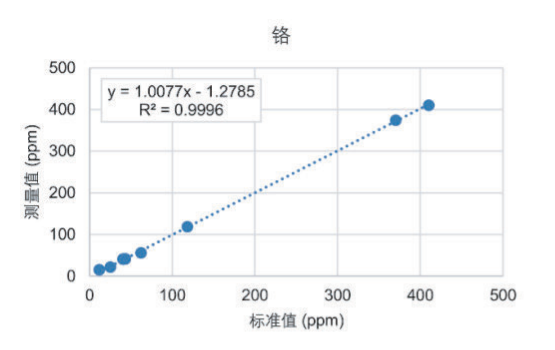

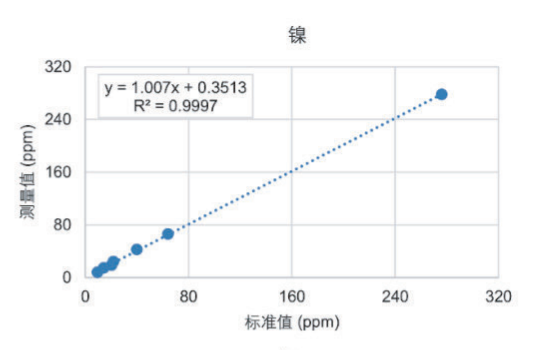

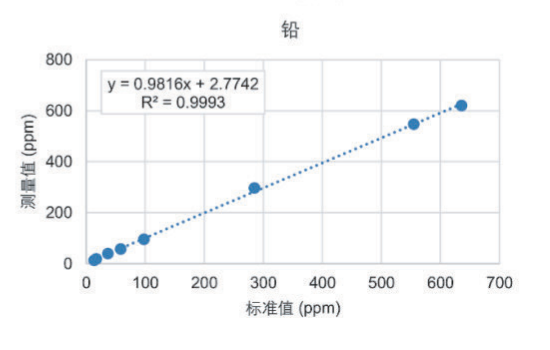

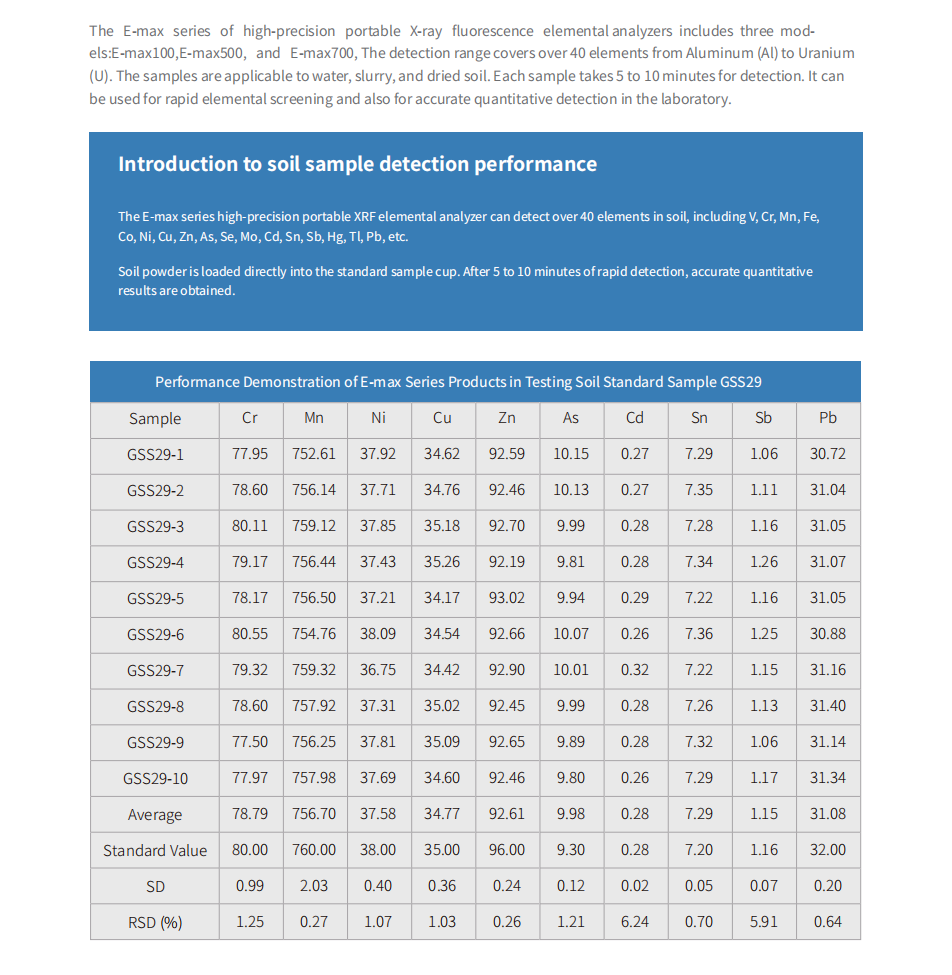

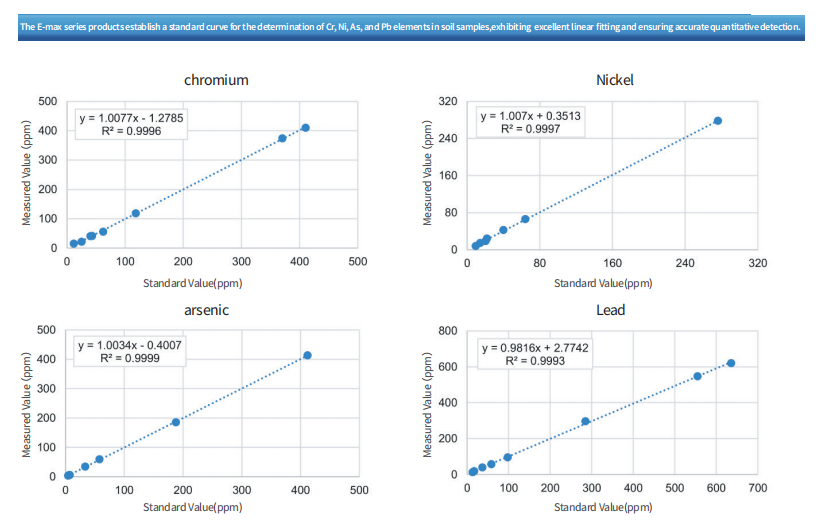

Performance data
The E‑max series is capable of elemental detection and analysis across a diverse range of sample matrices, including soil, solid waste, wastewater, agricultural fertilizers, crops, and atmospheric particles.

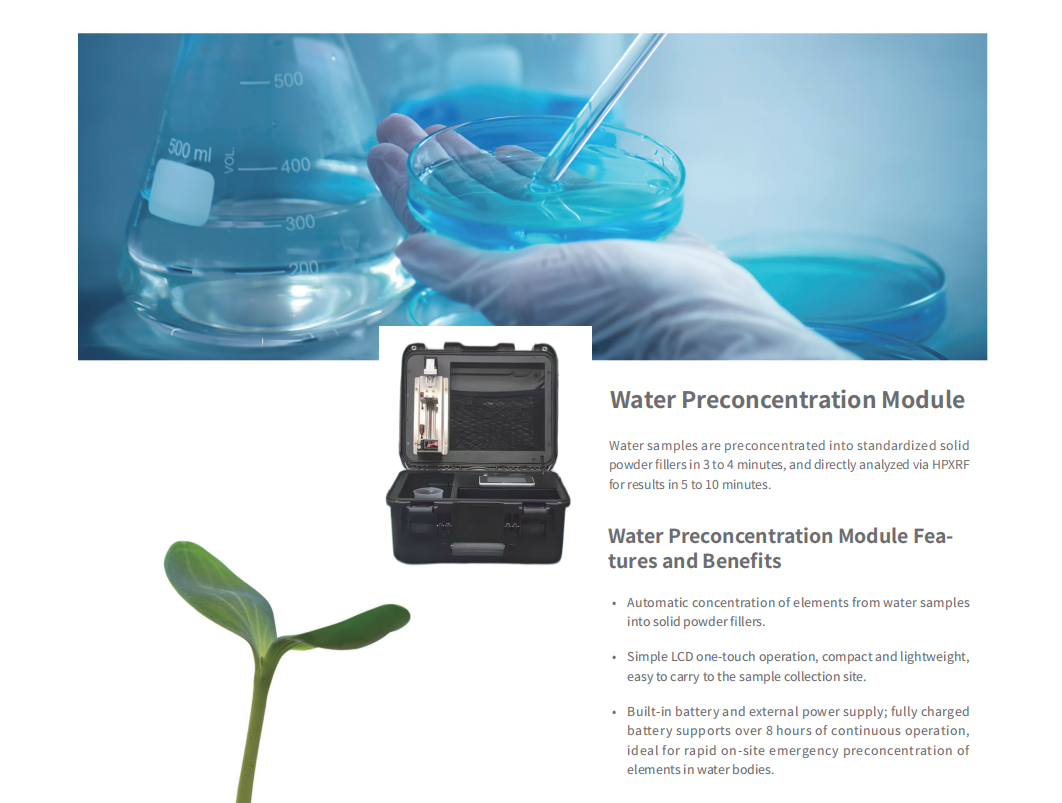

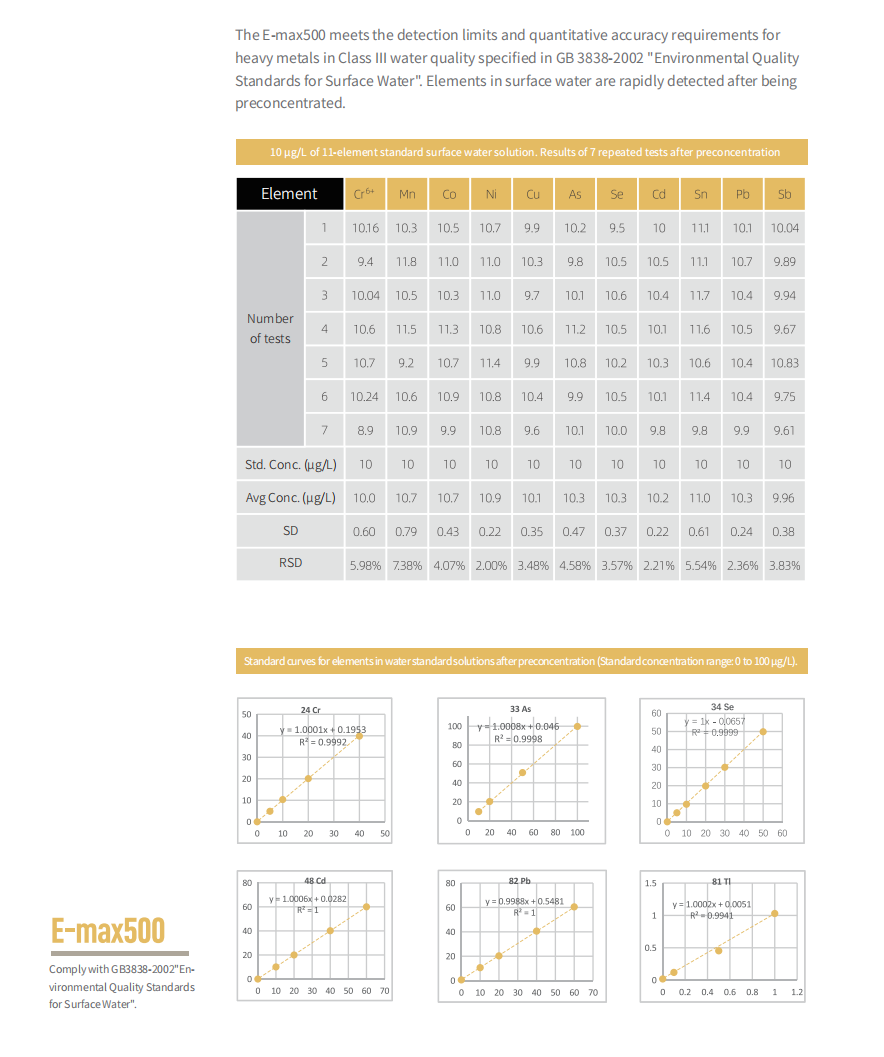

Water Preconcentration Module

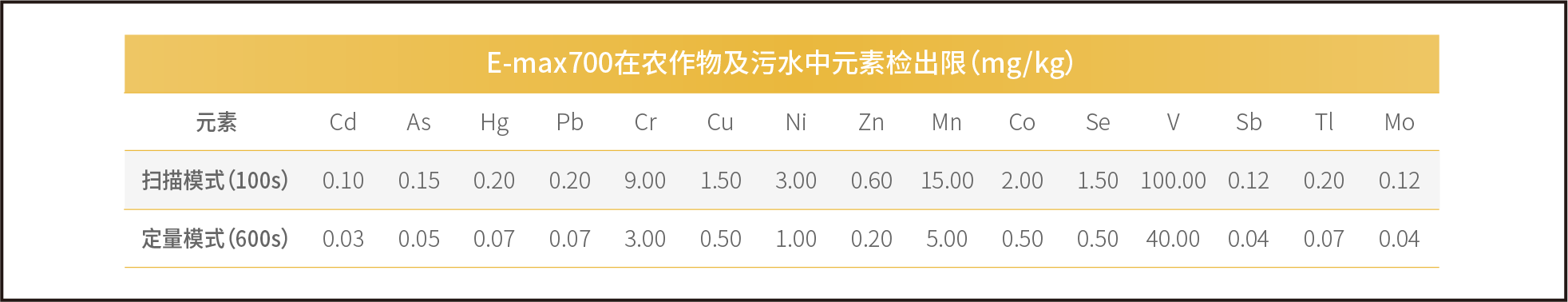

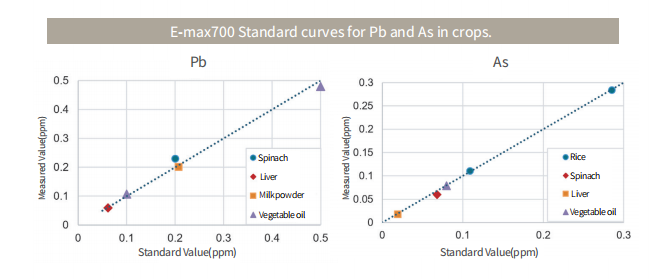

E-max700 Application Performance Introduction
The E‑max700 is well‑suited for elemental detection and analysis across a diverse range of sample matrices, including soil, solid waste, wastewater, agricultural fertilizers, crops, and atmospheric particulate matter.
Technical Specifications
Measuring time (Unit: s)：30-1200s
Data storage and output：Internal storage, USB drive, USB ports, and Wi-Fi output
Working temperature：-10℃-50℃
Element Range：Al-U
Network Connection Method：Wired LAN or Wireless Wi-Fi
Working Humidity：≤85%
Weight：＜9 kg
Dimensions：32 cm L x 24 cm W x 26 cm H
