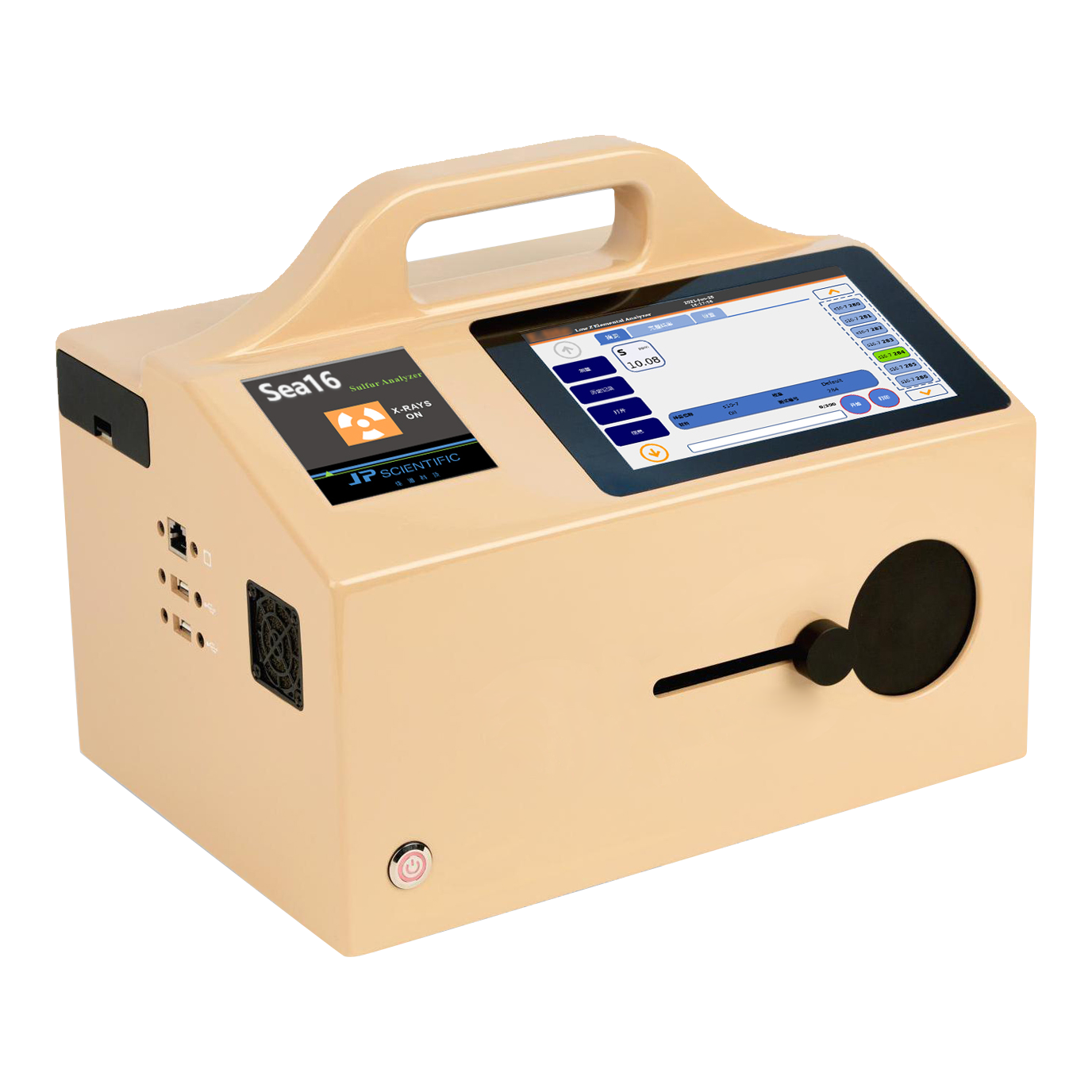

Sea16

视频展示

Suitable for rapid analysis and detection of sulfur elements in gasoline, diesel and other oil products. The analysis of total sulfur content covers a wide range of applications from ultra-low sulfur fuels to crude oil; it is applicable to laboratories of refineries, pipeline terminals, ships, additive plants, inspection vehicles and inspection laboratories, etc.

Complies with GB/T 17040-2019 "Determination of Sulfur Content in Petroleum and Petroleum Products - Energy Dispersive X-ray Fluorescence Spectrometry"; the sulfur content of the sample does not exceed 10mg/kg, with RSD ≤ 10%; when the sulfur content of the sample exceeds 10mg/kg, RSD ≤ 5%.

It has radiation protection measures, with built-in radiation protection and safety interlock locking devices. When powered on, the sample chamber is closed and operates in a fully enclosed performance mode. There is a function to prompt the closure of the sample chamber. It features anti-vibration and radiation protection designs. It has a 7-inch display screen, using an industrial-grade color touch screen.

Transferring data via USB and integrating with LIMS will become extremely easy. With 64GB of memory, it supports printing, USB connection, WIFI and Bluetooth.

Product features

The use of advanced hyperbolic surface bent crystal technology reduces background noise, significantly improves signal-to-noise ratio, and enhances the accuracy of product analysis.
It comes with a built-in power bank, which can support continuous operation for more than 4 hours.
The weight is less than 10 kilograms, making it easy to carry and suitable for outdoor work.

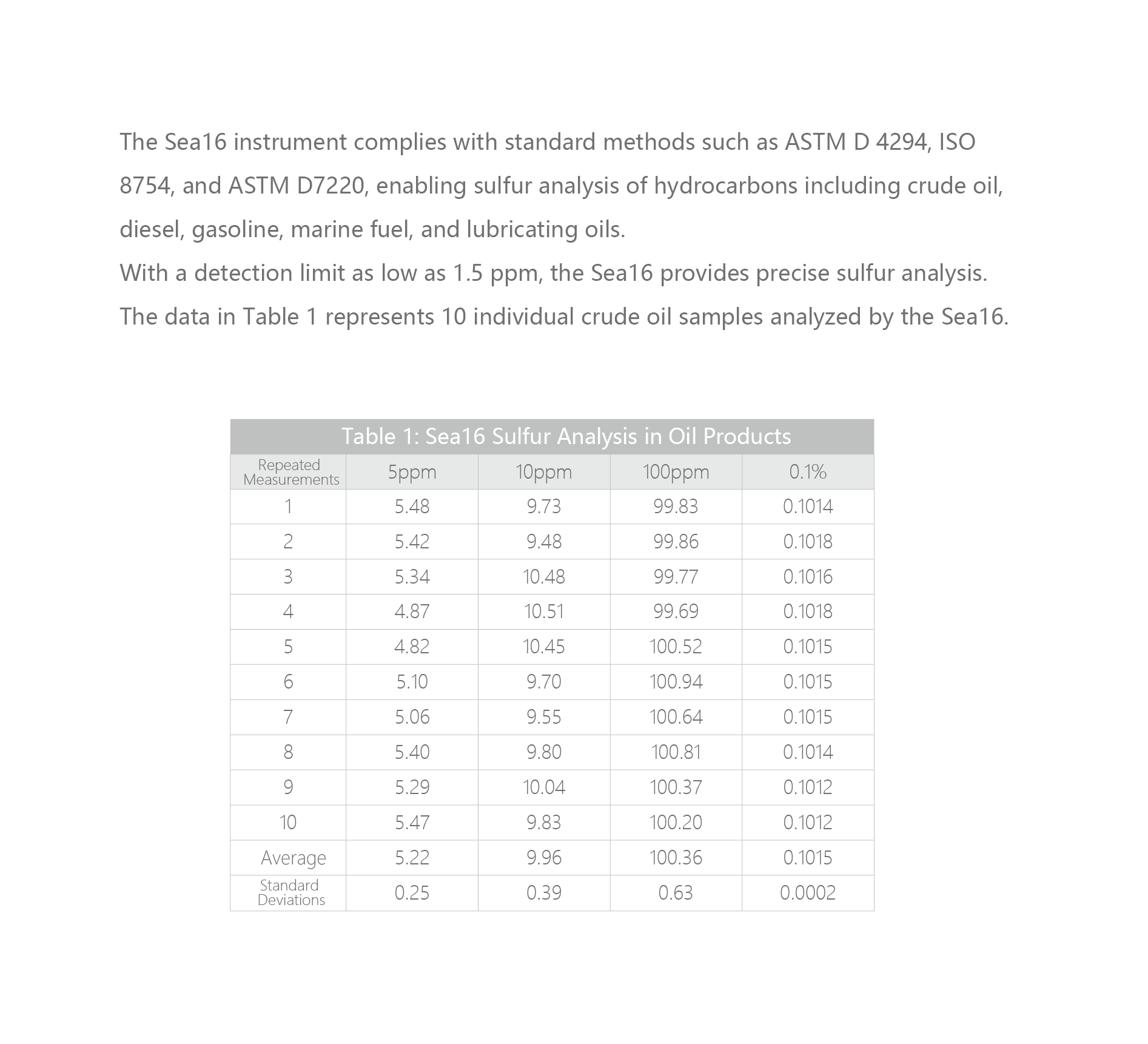

Performance data

Suitable for rapid sulfur analysis in oil products such as gasoline and diesel. Covers total sulfur content analysis, ranging from ultra-low sulfur fuels to crude oil, across a wide range of applications.

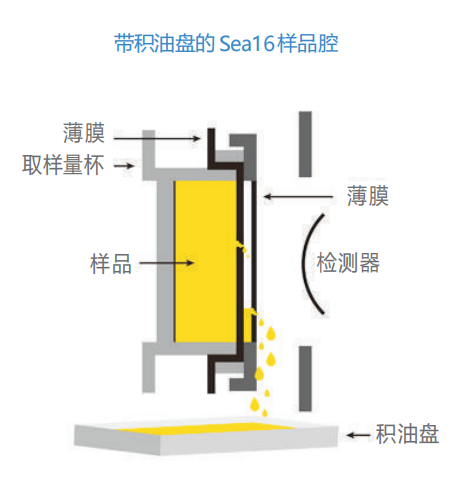

Injection diagram

Samples are injected into the unique accuCell sample cup. After the sample cup is inserted laterally into the instrument, this innovative design ensures that any accidental leakage is directed into the drip tray for easy cleaning and disposal.

Technical Specifications

Method Compliance:ASTM D4294, ISO 8754 & IP336, and ASTM D7220, and other standard methods

Measurement Time:30‒900 seconds

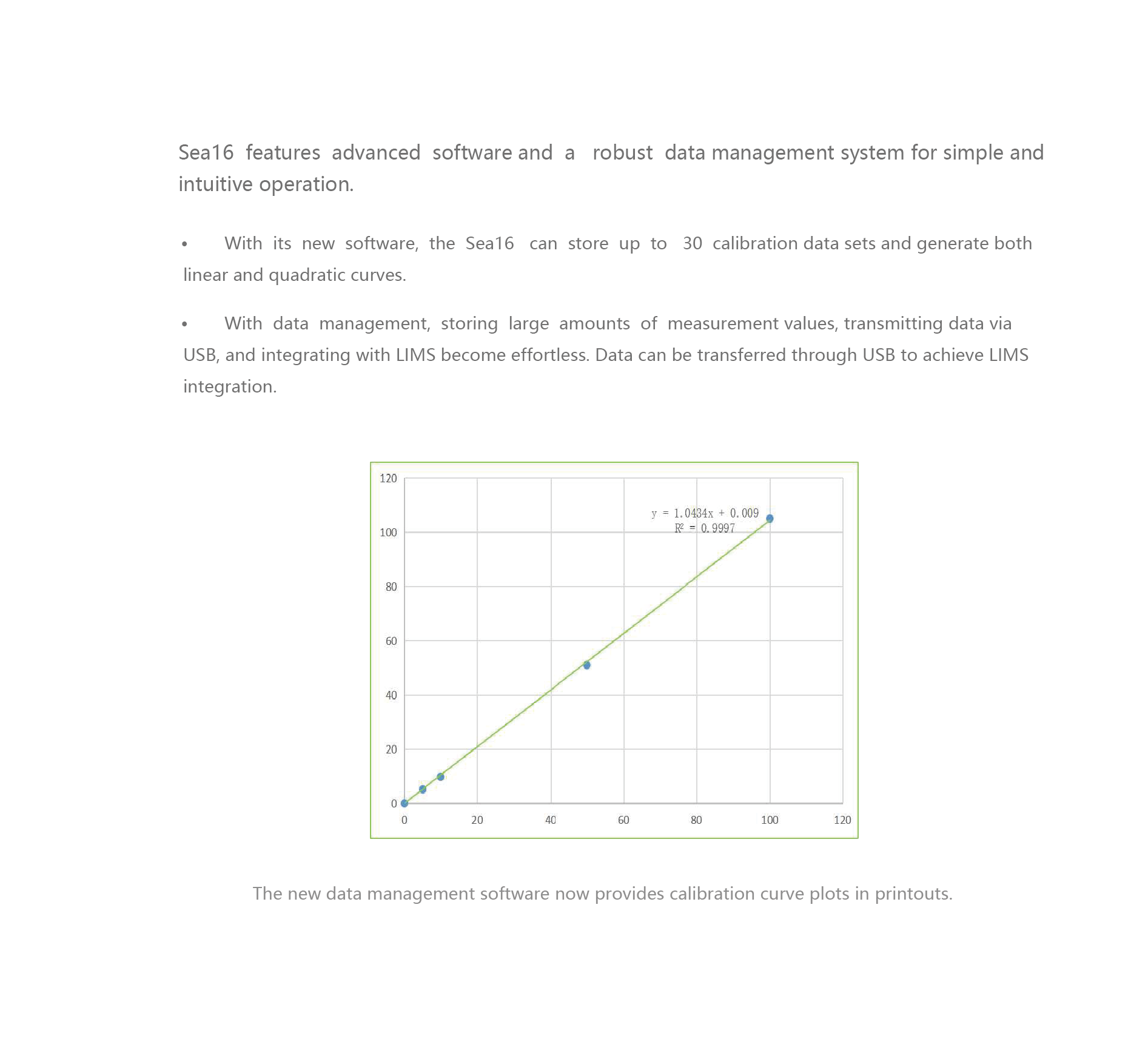

Calibration:30 calibration curves;Linear (Auto-Calibration)

Sample Cup Volume:2 mL

Data Output:Print output, USB and Ethernet PC connections, Wi-Fi, Bluetooth

Analytical Principle:Monochromatic X-ray Fluorescence Spectroscopy

I/O port:Ethernet 10/100, USB

Power Supply:110‒240 VAC ± 10%,50‒60 Hz

Operating Temperature:-5°C ~ 50° C

Positioning System:Supports GPS, BeiDou, and other positioning systems for traceable data collection points

Weight:7.5 kg

Dimensions:30.0 cm W x 30.0 cm L x 22.0 cm H
