Environmental Monitoring Solution
This series of analyzers is designed in accordance with the standard HJ1425‑2025 "Soil and Sediment – Determination of 11 Elements – Energy Dispersive X‑ray Fluorescence Spectrometry".
This series of analyzers is designed in accordance with the following national standards: GB15618‑2018 "Soil Environmental Quality – Risk Control Standard for Soil Contamination of Agricultural Land (Trial)" GB36600‑2018 "Soil Environmental Quality – Risk Control Standard for Soil Contamination of Development Land (Trial)"
This series of analyzers is designed in accordance with the "Technical Guidelines for Emergency Monitoring of Heavy Metals in Sudden Water Environment Incidents (Trial)" and is applicable to the requirements of GB 3838‑2002 "Environmental Quality Standards for Surface Water".
Application Fields: • Water quality early warning and monitoring • Source tracing and contamination investigation • Emergency response and on‑site rapid monitoring
产品特点
Featuring monochromatically‑excited XRF and doubly‑curved crystal optics, the system reduces scattered background, improves signal‑to‑noise ratio and delivers low detection limits for routine analytical use.
The system supports direct analysis of liquid samples, without the need for dilution, acid digestion, or other pretreatment procedures.
The instrument is designed for straightforward operation, requiring no highly specialized personnel. It supports one‑click sample loading and testing, with results available within 5 minutes.

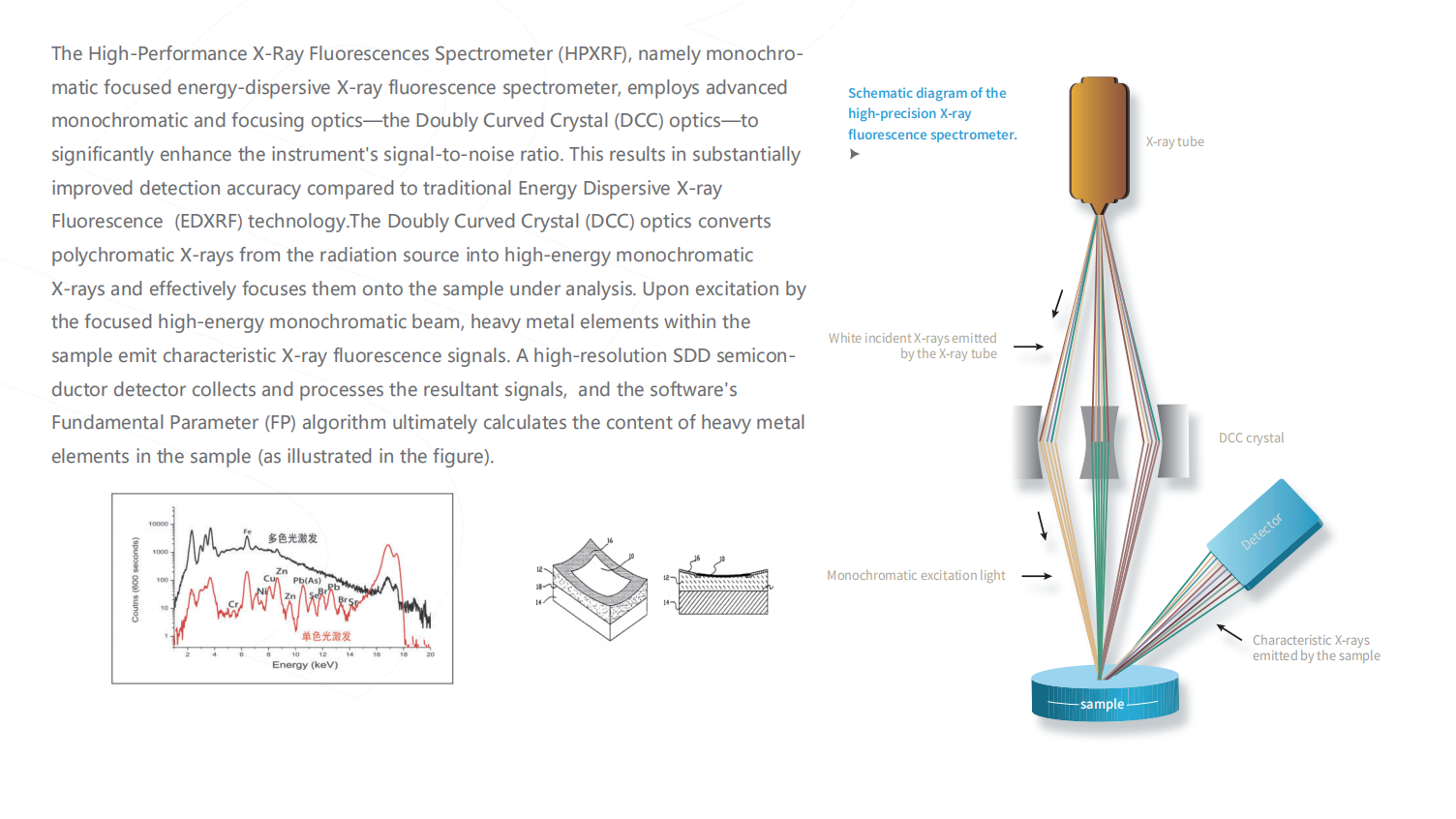

Technical Principles

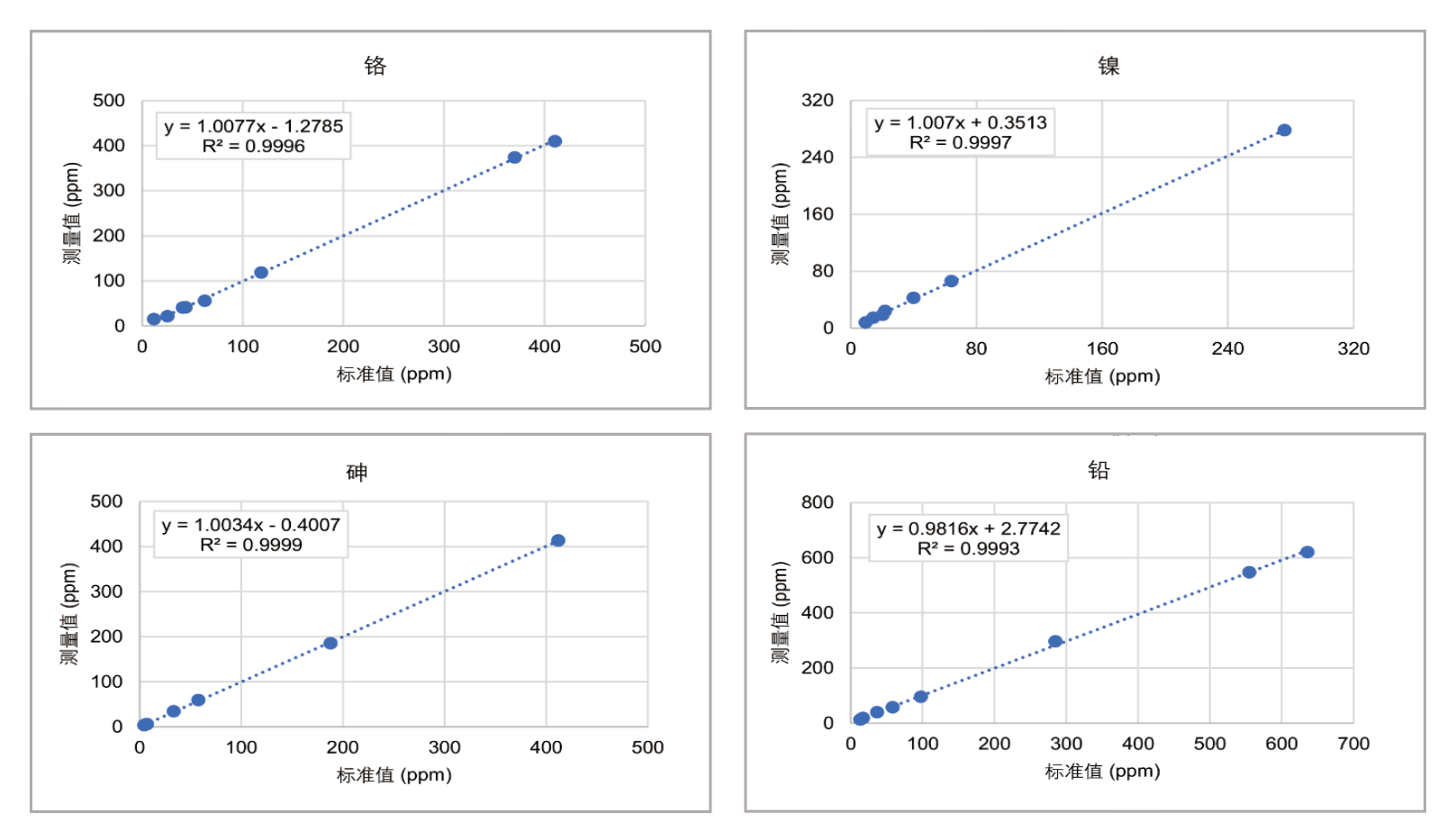

Standard curve

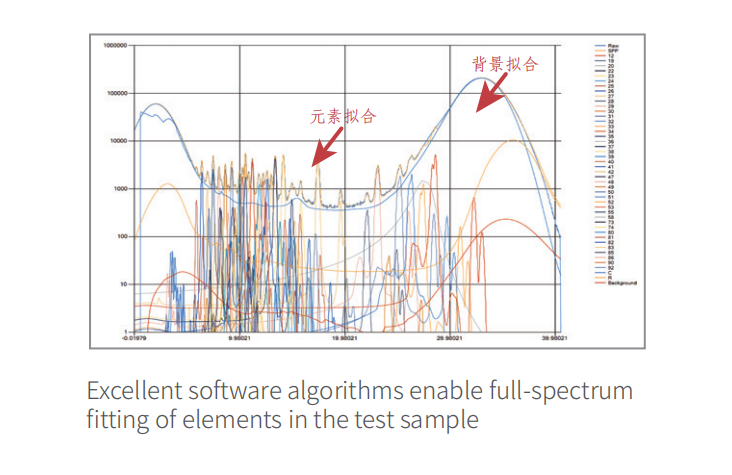

The system supports linear fitting of standard reference values against HPXRF measured data across a range of elements, providing reliable calibration and correlation.
Technical Specifications
Detection Element：Al-U
Measurement Module：Soil , Water Quality
Detector：Fast SDD Detector
Operating Temperature：-5°C~50℃
Measurement Range：ppb—100%
Excitaton source：X-Ray Tube, 50 kV, 1 mA
Measurement Time：30 ‒ 1200 seconds (Selectable)
Power Supply：110-240 VAC,50-60 Hz
